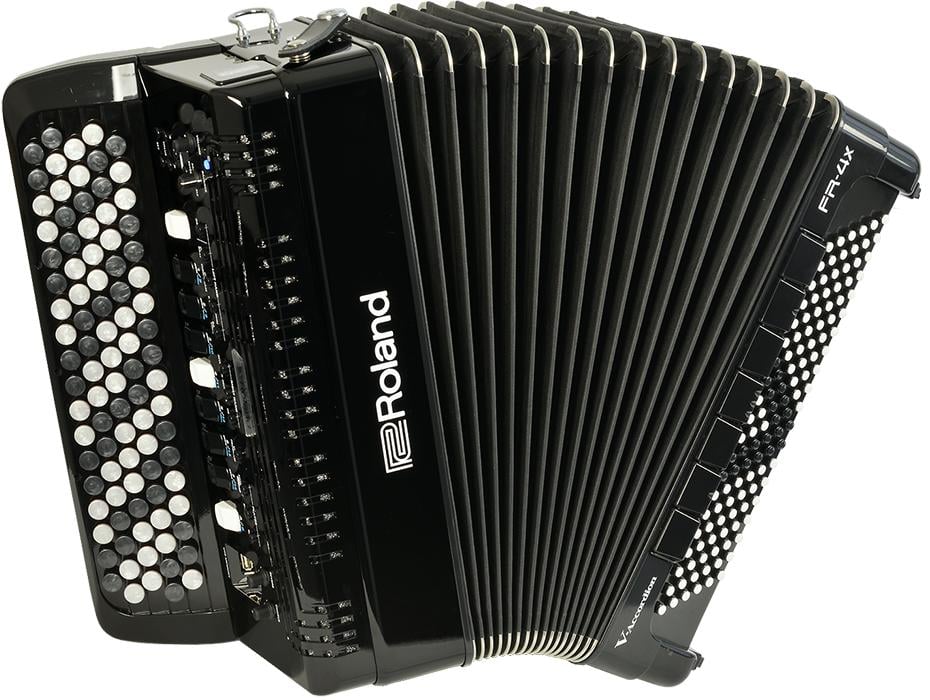

Roland FR-4xb: V-Accordion
[Keyboard, Bass & Bellows]
- Right hand
92 buttons (with velocity sensitivity)
- Left hand
120 bass buttons (with velocity sensitivity)
- Treble Mode (Right-Hand...
mehr lesen
Roland FR-4xb: V-Accordion
[Keyboard, Bass & Bellows]
- Right hand
92 buttons (with velocity sensitivity)
- Left hand
120 bass buttons (with velocity sensitivity)
- Treble Mode (Right-Hand Keyboard Note Layout)
C Griff Europe, C Griff 2, B Griff Bajan, C Griff Fin, D Griff 1, D Griff 2
- Bass & Chord Mode (Left-Hand Keyboard Note Layout)
2 Bass Rows, 3 Bass Rows A-7th, 3 Bass Rows A-5dim, 3 Bass Rows B-7th, 3 Bass Rows B-5dim, 3 Bass Rows Bx-7th, 3 Bass Rows Belgium
- Free Bass Mode (Left-Hand Keyboard Note Layout)
Minor 3rd, Bajan, Fifth, North Europe, Finnish
- Bellows
High-resolution pressure sensor for the detection of bellows pressure
Bellows resistance regulator: wheel with fine adjustment
- Bellows curve
Fixed Low, Fixed Med, Fixed High, X-Light, Light, Standard, Heavy, X-Heavy, Close, Open, Tango, Traditional, Jazz, Classic, Dynamic1, Dynamic2
[Sound source]
- Max polyphony
128 voices
- Tones (Accordion Set)
100 Accordion Sets
Each Accordion Set includes (number of sounds that can be assigned to the register buttons):
Right Hand Registers : 14 Accordion registers, 14 Orchestra registers, 14 Organ registers
Left Hand Registers : 7 Bass & Chord registers, 7 Free Bass registers,
7 Orchestra Bass registers, 7 Orchestra Chord registers, 7 Orchestra Free Bass registers
- Reed Footages
7 Treble, 5 Bass, 3 Chord, 2 Free Bass
- Orchestral sounds
162
* Orchestral sounds can also be used with orchestral bass sounds, orchestral chord sounds, and orchestral free bass sounds.
- Organ sounds (Virtual Tone Wheel)
32 presets for Treble, Orchestra Chord and Orchestra Free Bass sections,
16 presets for Orchestra Bass section
- Drum Sets
3
- User Programs
98: 7 User Program Bank x 14 registers
[PBM (Physical Behavior Modeling)]
- Noises
Stopping-reed growl, Closing valve noise, Left button noise
- Individual Reed Simulation
Hysteresis Threshold, Expression Curve, Pressure-Variant Filter, Pressure-Variant Pitch Deviation
- Switching Reed Sound Wave
By bellows acceleration, by note repetition speed
- Bellows opening/closing sound change
By bellows opening/closing detection
[Musette Tuning]
- Micro-Tuning Presets
16 Types: Off, Dry, Classic, F-Folk, American L/H, North Europe, German L/H,
D-Folk L/H, Alpine, Italian L/H, French, Scottish
- Fine Tuning reed footages 8- / 8+
-100 to 0 to +100
[Effects]
- Reverb
8 types
* Includes delay type.
- Chorus
8 types
* Includes delay type.
- Rotary for Organ sound
Slow/Fast
-gCassottoh simulation
Yes
- 4 Band EQ for Internal Speakers
Yes

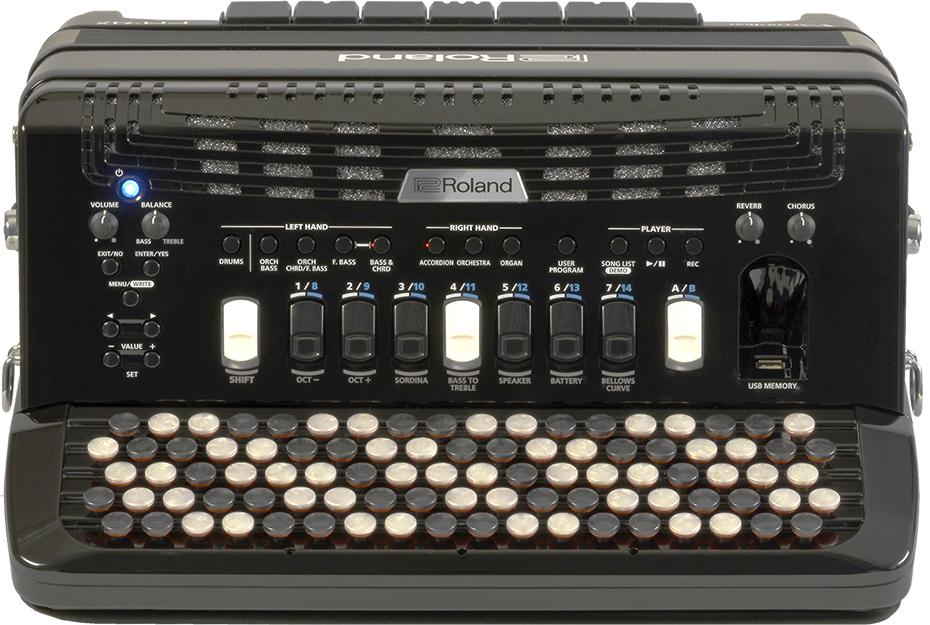

[Panel Controls]
- Knob controls & Registers
Volume, Balance, Reverb, Chorus,
Right hand register buttons 7 x 2
* Use the A/B button to switch between sounds assigned to the register buttons.
Left hand register buttons 7
- Navigation switches
Menu/Write, Exit/No, Enter/Yes, Cursor , Value -/+ (Set Down/Up)
- Other switches
Right Hand Parts switches (Accordion, Orchestra, Organ)
Left Hand Parts switches (Drums, Orch Bass, Orch Chrd/F.Bass, F.Bass, Bass&Chrd)
User Program, Song List, Play/Pause, Rec, Power
- Additional switches
6 user assignable function switches on last row of bass buttons
[Operation mode]
- Right Hand Keyboard Mode
Layer(Zone), High, Low
- Octave Shift
-3, 0, +3 for Orchestra
This setting can be saved individually for each set.
-1, 0, +1 for Treble, Orchestra, Organ (Right hand)
This setting can be saved individually for each user program.
- Orchestra Chord Guitar Mode
Gtr Table1, Gtr Table2, Gtr Table3
- Sound Edit
Yes
* The dedicated editor allows full editing.
- Bass to Treble
Yes
- Part Mute
Accordion, Orchestra, Organ, Bass&Chord, Free Bass, Orch Bass, Orch Chord, Orch Free Bass
- Bass & Chord with drum/percussion sounds
Programmable drum/percussion sounds for Bass/Orch Bass rows, Chord/Orchestra Chord rows.
- Audio Player and Audio REC
MP3/WAV file playback from a USB flash drive, WAV file recording to a USB flash drive
- Speakers On/Off
Yes
- Left-hand Button Keyboard Layer
Yes
[Other]
- Display
Custom LCD (8 characters + 16 segments x 4)
- Rated Power Output
2 x 11 W
- Speakers
2 x 10 cm
1 x Tweeter
- Wave Expansion
4 internal areas (8 MB each) to load new sounds
* When shipped from the factory, sounds are pre-installed in two areas.
- Power supply
AC adaptor
Batteries (AA-type rechargeable Ni-MH x 10)
* Expected battery life under continuous use: 5 hours speaker ON mode, 9 hours speaker OFF mode
- Current Draw
2000 mA
- Onboard connectors
OUTPUT jacks L/Mono (Treble), R/Mono (Bass): 1/4h phone type
PHONES jack: Stereo 1/4h phone type
INPUT jack: Stereo miniature phone type
MIDI (IN or OUT) connectors
USB MEMORY port
USB COMPUTER port (USB Hi-Speed MIDI support)
(Use a USB cable and a USB port on your computer that supports Hi-Speed USB.)
DC IN jack
-Dimensions
470 (W) x 240 (D) x 390 (H) mm
18-9/16 (W) x 9-1/2 (D) x 15-3/8 (H) inches
- Weight
8.6 kg
19 lbs
(without straps and batteries)
- Accessories
AC Adaptor
Power cord (for connecting the AC adaptor)
Ownerfs Manual
Reference caps for right-hand button keyboard
Reference caps for the bass buttons
Straps
Accordion cover
Attachment strip
- Option (sold separately)
USB Flash memory
Soft case for accordion (BAG-FR-3)
Headphones
MIDI foot controller (FC-300)
V-Akkordeon Knopf-Version
92 Knöpfe und 120 Bassknöpfe
Kompakt und leicht
Soundmodul und Benutzeroberfläche aus dem Flaggschiff FR-8x
Kopfhörer und Line-Ausgänge
100 Akkordeon-Sound-Sets (einschließlich 67 vorgeladene Sets), 162 Orchesterklänge , 32 Orgelklänge , 3 Drum-Sounds
Eingebaute Chorus, Hall, und Rotary-Effekte
Onboard-Audio-Recorder
Schnelle Reaktion und hohe Empfindlichkeit der Balgdruck-Sensorik
Widerstandsregler zum Einstellen des Blasebalgs
Leistungsstarke Onboard-Verstärkungssystem (zwei Lautsprecher + einem Hochtöner)
Charakter-Typ-LCD-Bildschirm
Vier Erweiterungssteckplätze für den Zugriff auf zusätzliche Klangbibliotheken (Balkan und Dallapè Erweiterungen sind bereits vorinstalliert)
FR-4- X Editor Software
USB-Anschluss und MIDI I / O
USB-Speicheranschluss für die Song-Wiedergabe und Aufnahme
Netzteil oder 10 AA-Batterien -
Erhältlich in schwarz oder rot
Hergestellt in Italien
Gewicht. 8,6 kg
