Technische Daten
USB I/O VSR Specifications
Broadcast standard USB Audio Interface
Connector USB type B port
Codec High Resolution 24 bit, 44.1 KHz Plug and Play. switchable sample rates of 48 and 96 KHz with...
mehr lesen
USB I/O VSR Specifications
Broadcast standard USB Audio Interface
Connector USB type B port
Codec High Resolution 24 bit, 44.1 KHz Plug and Play. switchable sample rates of 48 and 96 KHz with ASIO driver
Selectable Buffers :
Streaming Buffer 1mS, 2mS, 4mS, 8mS, 16mS, or 32mS
ASIO Buffer 64, 128, 512, 1024, 2048, 4096, or 8192 samples
ASIO Driver http://www.arx.com.au/drivers.htm
Important - make sure the USB I/O VSR is connected to the computer before installing the Driver
Maximum Analogue Input Level +12dB
Digital recording and playback level for 0dB analog in –18dBFS (full scale)
Maximum Analog Output Level +12dB
Input Impedance 10 KOhms Transformer Balanced
Output Impedance 300 Ohms Transformer Balanced
Maximum Input Level Nominal 0 dB
Maximum Output Level Nominal 0 dB
Input/Output Noise USB - System dependent
Frequency Response 20 - 20 KHz ± 0.5 dB
Power Operating current via USB Port 80mA

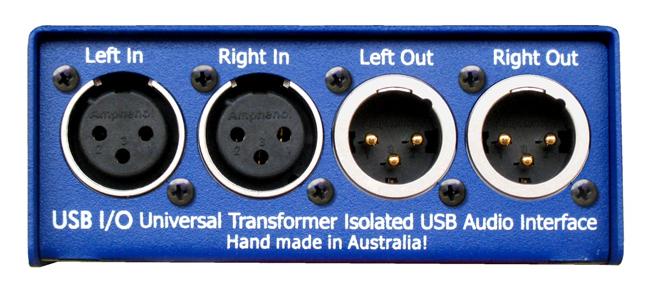

Input Connectors
2 x Female XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 via ground Lift switch
Output Connectors
2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 via ground Lift switch
Construction
All-steel baked enamel coated chassis, fibreglass PCB, epoxy printing,
non-slip rubber base. Package includes a premium quality USB-A to USB-B cable
System Requirements
Windows PC running Windows XP, 7/8/10, Mac running OS X or later
USB port
Audio software installed
ARX ASIO Driver loaded http://www.arx.com.au/drivers.htm
Note: The sample rate will default to 44.1 Khz if ARX ASIO Driver is not used.
2/2 USB Audiointerface

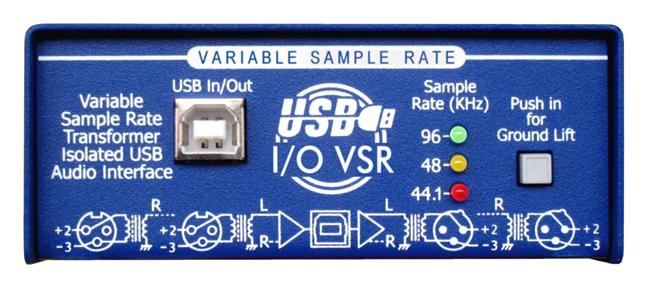

VSR- Variable Smple Rate (44,1 - 48 und 96kHz)
2x XLR male Output, trafosymmetriert
2x XLR female Input, trafosymmetriert
USB Bus powered
Robuste Ausführung mit Metallgehäuse
