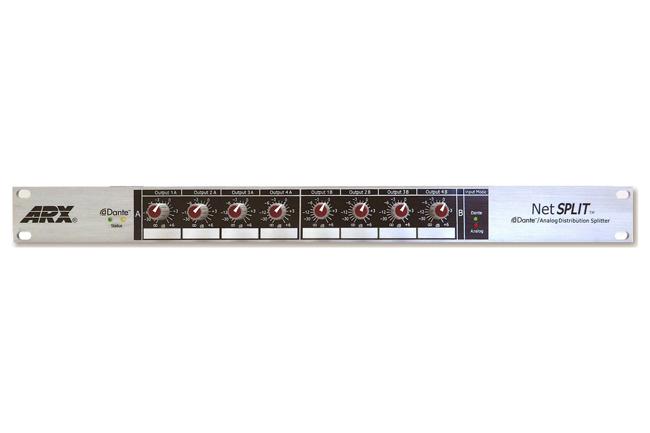

 Dante Netzwerk/Analog 2/8 Splitter
19" 1HE Gehäuse
Schaltbarer analoger bzw. digitaler Input
RJ45 Netwerkbuchse für den Dante Input

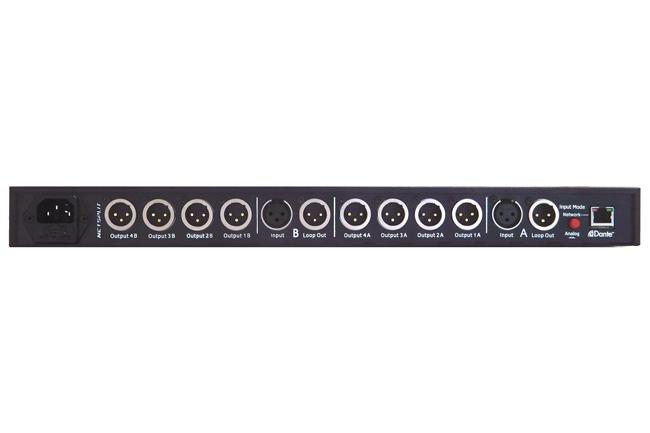

2x XLR female Input mit je einem XLR male Durchschliff
2x4 XLR male Outputs, getrennt regelbar
Dante Interface über den Date Manager konfigurierbar | |
| Pegel | Linepegel Ausführung: Aktiv-Splitter Kanalanzahl: 2 |
Dante Input and Analog Output Specifications: As per Analog mode (see below) except for: Output Level +10dB max Frequency Response 20Hz - 20 kHZ +- .5dB Dynamic range < 100dB Signal to noise < 100dB THD <.01% at +4dBu Sample Rate 44.1KHz, 48 KHz (default), 96KHz Bit Depth 24 Bits Network Speed 100 Mbps Power Consumption 2 Watts max. Power over Ethernet Class 1 802.3af POE PD compliant Analog Input and Output Specifications: Input Impedance 44K Ohms Balanced, 22K Ohms Unbalanced Input Headroom +21dB Output Level +26dB Output Signal/Noise (@ unity gain) -95dB unweighted -101dB A weighted Output Impedance 150 Ohms Balanced, 75 Ohms Unbalanced Dynamic Range 121dB Frequency Response 20Hz-20 KHz -.5dB Distortion (@ unity gain) 100Hz .0035% 1KHz .0033% 10KHz .0037% Input Connector Type Female XLR plus Male XLR Input Loop Output Connector Type Male XLR
