Sound Generator
-Piano Sound
Piano Sound: PureAcoustic Piano Modeling
-Max. Polyphony
Piano:Limitless (Solo playing using No.1 to No.8 tones in piano category)
Other: 256
-Tones
Piano: 20 tones
E.Piano: 18 tones
Organ: 18 tones
Strings/Pad: 27 tones
Synth/Other: 279 tones (including 8 drum sets, 1 SFX set)
Ambience
PureAcoustic Ambience
Type: Studio, Lounge, Concert Hall, Wooden Hall, Stone Hall, Cathedral
Depth: 11 types
My Stage
12 types
Keyboard
-Keyboard
PHA-50 Keyboard: Wood and Plastic Hybrid Structure, with Escapement and Ebony/Ivory Feel (88 keys)
Speaker System
-Speakers
Speakers: 8 x 12 cm (3-3/16 x 4-3/4 inches) x 2 (with speaker box)
Dome Tweeters: 2.5 cm (1 inches) x 2
-Rated Power Output
25 W x 2
5 W x 2
Headphones
Headphones Acoustic Projection
Bluetooth
Audio: Bluetooth Ver 3.0 (Supports SCMS-T content protection)
MIDI: Bluetooth Ver 4.0
Compatible Android / iOS Apps (Roland)
Piano Every Day
Piano Designer
Data Playback
-Playable Software
Standard MIDI Files (Format 0, 1)
Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps - 320 kbps, requires USB flash drive)
Recorder
-Recordable Software
Standard MIDI Files (Format 0, 3 parts, Approx. 70,000 notes memory)
Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive)
Internal Songs
34 Songs
Tuning, Voicing
-Touch Sensitivity
Key Touch: 100 types, fixed touch
Hammer Response: 10 types
-Master Tuning
415.3466.2 Hz (adjustable in increments of 0.1 Hz)
-Temperament
10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key
- Effects
Ambience
Equalizer (3-band digital equalizer)
Only for organ tones:
Rotary Speaker Effect
Only for E.Piano tones:
Modulation Speed
- Mic Effects
Compressor
Doubling
Echo
-Piano Designer
Lid
Key Off Noise
Hammer Noise
Duplex Scale
Full Scale String Resonance
Key Off Resonance
Cabinet Resonance
Soundboard Type
Damper Noise
Soft Pedal Type
Single Note Tuning
Single Note Volume
Single Note Character
Convenient Functions
Metronome (adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone)
Auto Tempo
Transpose (Keyboard/Song: in semitones)
Registration (45 registrations, capable of pedal shift)
Registration Set
Dual
Split (split point adjustable)
Twin Piano
Tone Demo
Auto Off
Other
-Display
Graphic LCD 132 x 32 dots
-Control
Volume slider
Equalizer sliders (Low/Mid/High)
Part sliders (Lower/Upper)
Song Vol. slider
Mic Vol. slider
Speaker switch
Mic Gain knob

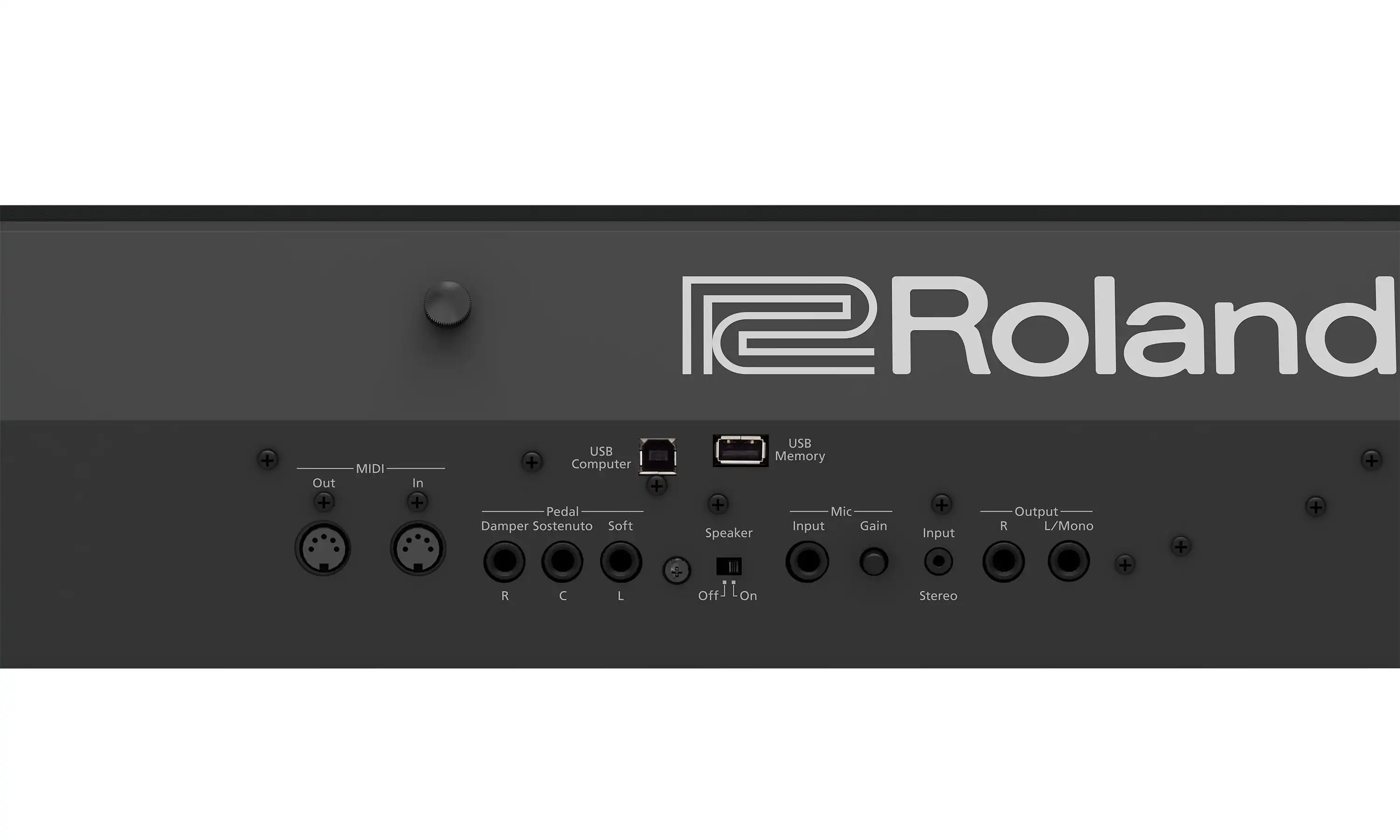

-Connectors
DC In jack
Pedal (Damper/R, Sostenuto/C *1, Soft/L *1) jacks: TRS 1/4-inch phone type
Input Stereo jack: Stereo miniature phone type
Output (L/Mono, R) jacks: 1/4-inch phone type
Mic Input jack: 1/4-inch phone type
USB Computer port: USB B type
USB Memory port: USB A type
Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type
MIDI (Out, In) connectors
*1: Assignable
-Power Supply
AC adaptor
-Power Consumption
40W (When using the included AC adaptor)
*Approximate power consumption when playing the piano at medium volume: 14W
Power consumption when sound has not been played after power-on: 12W
Dimensions
Detached music rest:
1,340 (W) x 390 (D) x 136 (H) mm
52-13/16 (W) x 15-3/8 (D) x 5-3/8 (H) inches
FP-90X with KSC-90 and music rest:
1,340 (W) x 418 (D) x 932 (H) mm
52-13/16 (W) x 16-1/2 (D) x 36-3/4 (H) inches
Weight
23.6 kg, 52 lbs 1 oz (FP-90X with music rest)
37.8 kg, 83 lbs 6 oz (FP-90X with KSC-90, KPD-90, and music rest)
Accessories
Owner?s Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Music rest
Damper pedal (DP-10, capable of continuous detection)
Option (sold separately)
Dedicated stand: KSC-90
Dedicated pedal board: KPD-90
Keyboard stand: KS-G8B, KS-10Z, KS-12, KS-20X
Pedal unit: RPU-3
Damper pedal: DP series
Pedal switch: DP-2 (*1)
Expression pedal: EV-5
Carrying Bag: CB-88RL
Headphones
*1 Cannot use for Damper/R.

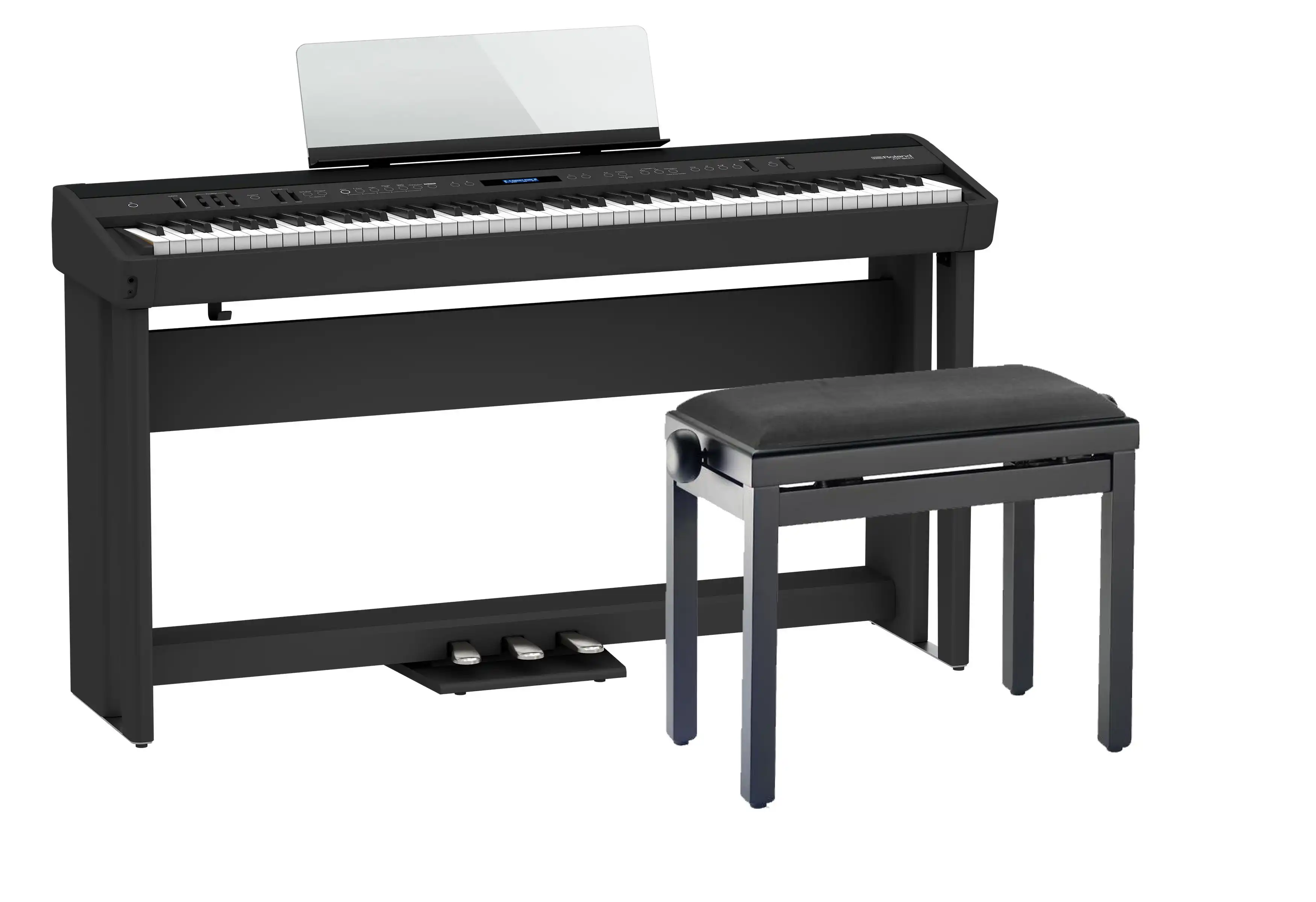

Komplett Set des ROLAND FP90BK
ROLAND FP90 BK (schwarz)
Holzstativ ROLAND KSC90BK
Pedalleiste ROLAND KPD90BK
höhenverstellbare Pianobank in schwarzem Holz.
