Size/Weight Dimensions (W x D x H)
1234 mm x 456 mm x 138 mm (48-9/16” x 17-15/16” x 5-7/16”)
Weight
13.0kg (28 lbs., 11 oz.)
Control Interface
Keyboard
Number of Keys: 76
Type: Organ (FSX), Initial Touch/Aftertouch
Touch Response: Normal, Easy1, Easy2, Soft1, Soft2, Hard1, Hard2
Other Controllers
Joystick: Yes
Knobs: 6 (Assignable)
Sliders: 9 (Assignable), Cross Fader
Articulation: Switches ART. 1, ART. 2, ART. 3
Main Display
Type: TFT Color Wide VGA LCD
Size: 800 x 480 dots, 9 inch
Touch Screen: Yes
Language: English, German, French, Spanish, Italian
Sub Display
Type OLED (LIVE CONTROL View)
Size 589 x 48 dots
Language: English
Panel: Language English
Voices
Tone Genetation
AWM Stereo Sampling, AEM technology
Polyphony
256 (max.)
(128 for Preset Voices + 128 for Expansion Voices)
Preset
Number of Voices: 1,652 Voices + 58 Drum/SFX Kits
Featured Voices: 10 Revo! Drums/SFX, 76 Ensemble, 390 Super Articulation!, 75 Super Articulation2!, 82 MegaVoice, 40 Sweet!, 81 Cool!, 160 Live!, 24 Organ Flutes!
Compatibility
XG, GS, GM, GM2 (for Song playback)
Part
Right 1, Right 2, Right 3, Left
Effects
Reverb: 59 Preset + 3 User
Chorus: 107 Preset + 3 User
DSP Variation: 358 Preset(with VCM) + 3 User Insertion 1–28: 358 Preset(with VCM) + 10 User
Master Compressor: 5 Preset + 5 User
Master EQ: 5 Preset + 2 User
Part EQ: 28 Parts
Vocal Harmony: 54 Preset + 60 User
Synth Vocoder: 20 Preset + 60 User
Others: Mic Effect: Noise Gate, Compressor, 3 Band EQ, Vocal Effect: 23
Styles
Preset
Number of Styles: 550
Featured Styles: 491 Pro, 39 Session, 10 Free Play, 10 DJ
Fingering: Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Style Control: INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
Other Features
One Touch Setting (OTS): 4 for each Style
Compatibility
Style File Format (SFF), Style File Format GE (SFF GE)
Expandability
Expansion Voice Yes (approx. 1.8 GB)
Expansion Style Yes (Internal Memory)
Expansion Audio Style Yes (Internal Memory)
Songs (MIDI)
Preset
Number of Preset Songs: 9 Demo Songs, 11 Preset Songs
Recording
Number of Tracks: 16
Data Capacity: approx. 300 KB per Song
Function: Quick Recording, Multi Track Recording, Step Recording
Format
Playback: SMF (Format 0, Format 1), XF
Recording: SMF (Format 0)
Songs (Audio)
Recording Data Capacity: approx. 0.8 GB (80 minutes) per Song
Format Playback: WAV (44.1kHz, 16bit, stereo), MP3 (44.1kHz, 64/96/128/256/320kbps, stereo)
Recording: WAV (44.1kHz, 16bit, stereo)
Playback (Multi) .aud (Genos original: 44.1 kHz sample rate, 16 bit resolution, stereo)
Recording (Multi): .aud (Genos original: 44.1 kHz sample rate, 16 bit resolution, stereo)
Time Stretch: Yes
Pitch Shift: Yes
Vocal Cancel: Yes
Multi Pads
Number of Multi Pad Banks 448 Banks x 4 Pads
Audio Link Yes
Functions
Voices
Harmony: Yes
Arpeggio: Yes
Panel Sustain: Yes
Mono/Poly: Yes
Styles
Style Creator: Yes
OTS Information: Yes
Songs
Score Display Function: Yes
Lyrics Display Function: Yes
Lesson/Guide: Follow Lights, Any Key, Karao-Key, Your Tempo
Multi Pads
Multi Pad Creator: Yes
Registration Memory
Number of Buttons: 10
Control: Registration Sequence, Freeze
Playlist
Number of Records: 2,500 (max.) Records per Playlist file
Search
Yes
Demo
Yes
Overall Controls
Metronome: Yes
Tempo Range: 5 – 500, Tap Tempo
Transpose: -12 – 0 – +12
Tuning: 414.8 – 440.0 – 466.8 Hz (approx. 0.2Hz increments)
Octave Button: Yes
Scale Type: 9 Types
Miscellaneous
Direct Access: Yes
Text/Image Display Function: Yes
Wallpaper Customization: Yes
Storage and Connectivity
Storage
Internal Memory (User Drive): Yes (approx. 58 GB)
External Drives: USB flash drive
Connectivity
Headphones Standard stereo phone jack (PHONES)
Microphone Yes (Combo Jack), Phantom Power (+48V) available
MIDI MIDI A (IN/OUT), MIDI B (IN/OUT)
AUX IN L/L+R, R
LINE OUT MAIN (L/L+R, R), SUB (1, 2), SUB (3, 4 / AUX OUT)
DIGITAL OUT (Audio) Yes (coaxial)
FOOT PEDAL 1 (SUSTAIN), 2 (ART.1), 3 (VOLUME), Function Assignable
USB TO DEVICE Yes (x 3)
USB TO HOST Yes
Wireless LAN Yes (*)
• Standards:
IEEE802.11b/g/n (IEEE802.11n 5GHz: not compatible)
• Range of transmit frequency (channels):
Models for United States and Canada: 2400–2472 MHz (Channels 1–11)
Others: 2400–2483.5 MHz (Channels 1–13)
• Maximum RF output power: 14 dBm
• Security:
WEP, WPA2-PSK(AES), WPA/WPA2 mixed PSK
Power Supply
Auto Power Off: Yes
Included Accessories
• Owner’s Manual
• Online Member Product Registration
• AC Power Cord
• Music Rest, two Music Rest Brackets
Separately Sold Accessories

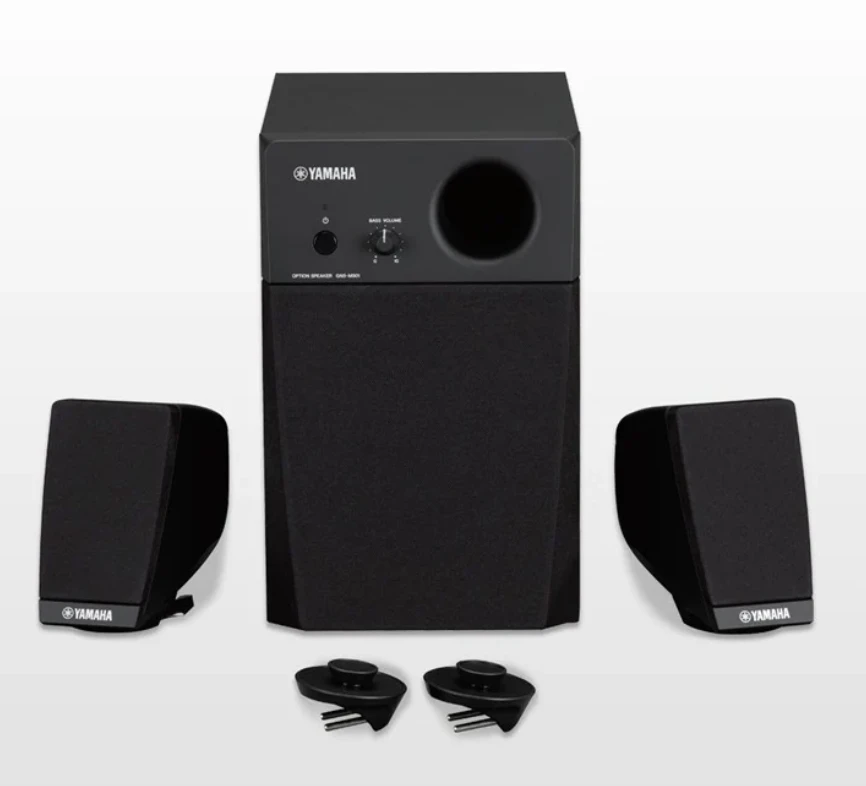

• Option Speaker: GNS-MS01
• Headphones: HPH-50, HPH-100, HPH-150
• Footswitch: FC4A, FC5
• Foot Controller: FC7
• Wireless MIDI Adaptor: UD-BT01, MD-BT01

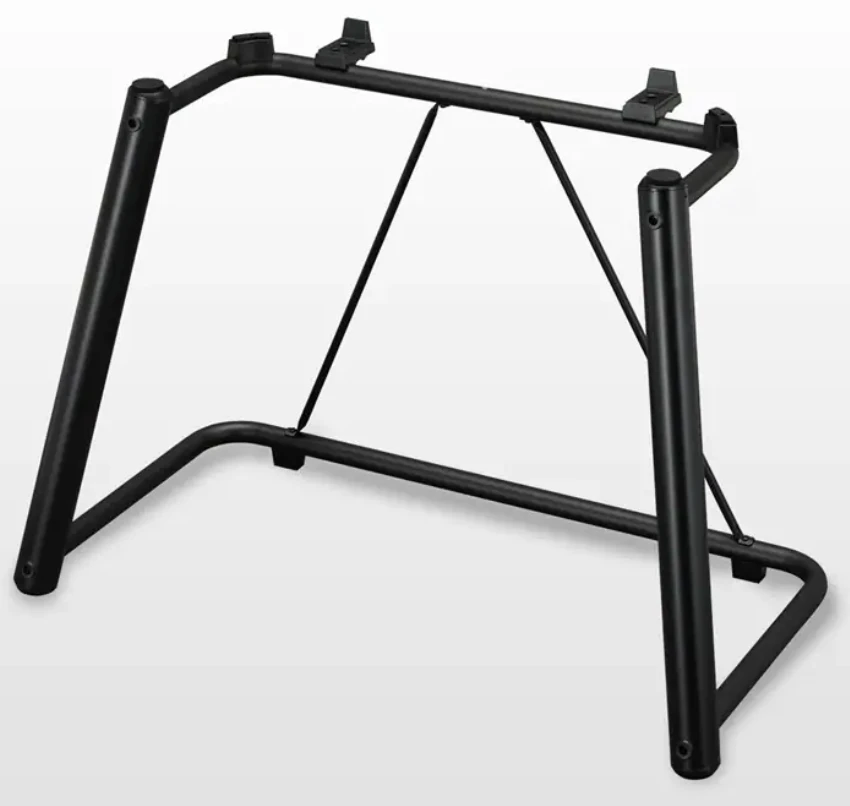

• Keyboard Stand: L-7B
Ausstellungsstück aus unserem Shop!

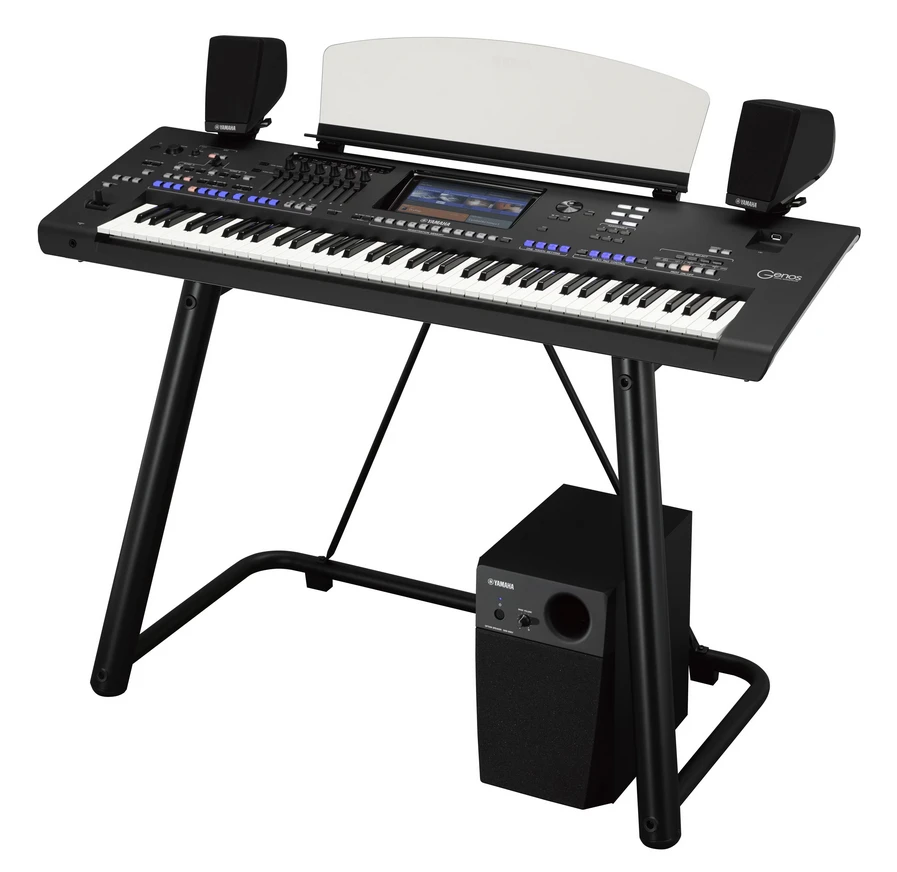

Set inkludiert
