 Digital track features (×8) | 10 × selectable machine, 1 × Bass drum, 2 × Snare drum, 1 × Cymbal/hihat, 1 × Percussion, 1 × Clap, 4 × Tonal synth, 1 × digital overdrive per track, 1 × digital multimode filter per track, 1 × digital base-width filter per track, 2 × assignable LFOs per track, Switchable to MIDI machine
Analog Drum track features (×3): 15 × selectable machine, 6 × Bass drum, 4 × Snare drum, 2 × Rimshot, 1 × Dual VCO synth, 1 × Impulse, 1 × Noise generator, 1 × analog overdrive per track, 1 × analog multimode filter per track, 2 × assignable LFOs per track, Switchable to MIDI machine
Analog Cymbal track features (×1): 12 × selectable machine, 5 × Hihat, 3 × Cymbal, 2 × Cowbell, 1 × Impulse, 1 × Noise Generator, 1 × analog overdrive per track, 1 × analog multimode filter per track, 2 × assignable LFOs per track, Switchable to MIDI Machine
Performance features: 1 × Retrig modifier, 1 × Velocity modifier, 2 × Assignable trig modifiers, Keyboard mode with 36 different scales
MIDI Machine features: 4 note polyphony per step, 8 × assignable CC controls, 1 × assignable LFOs per track
Sequencer features: 64 steps per pattern and track, Individual pattern length per track, Individual time scale multiplier per track, Parameter locks, Trig conditions & trig chance, Retrig, Micro timing
Send effects: Delay, Reverb

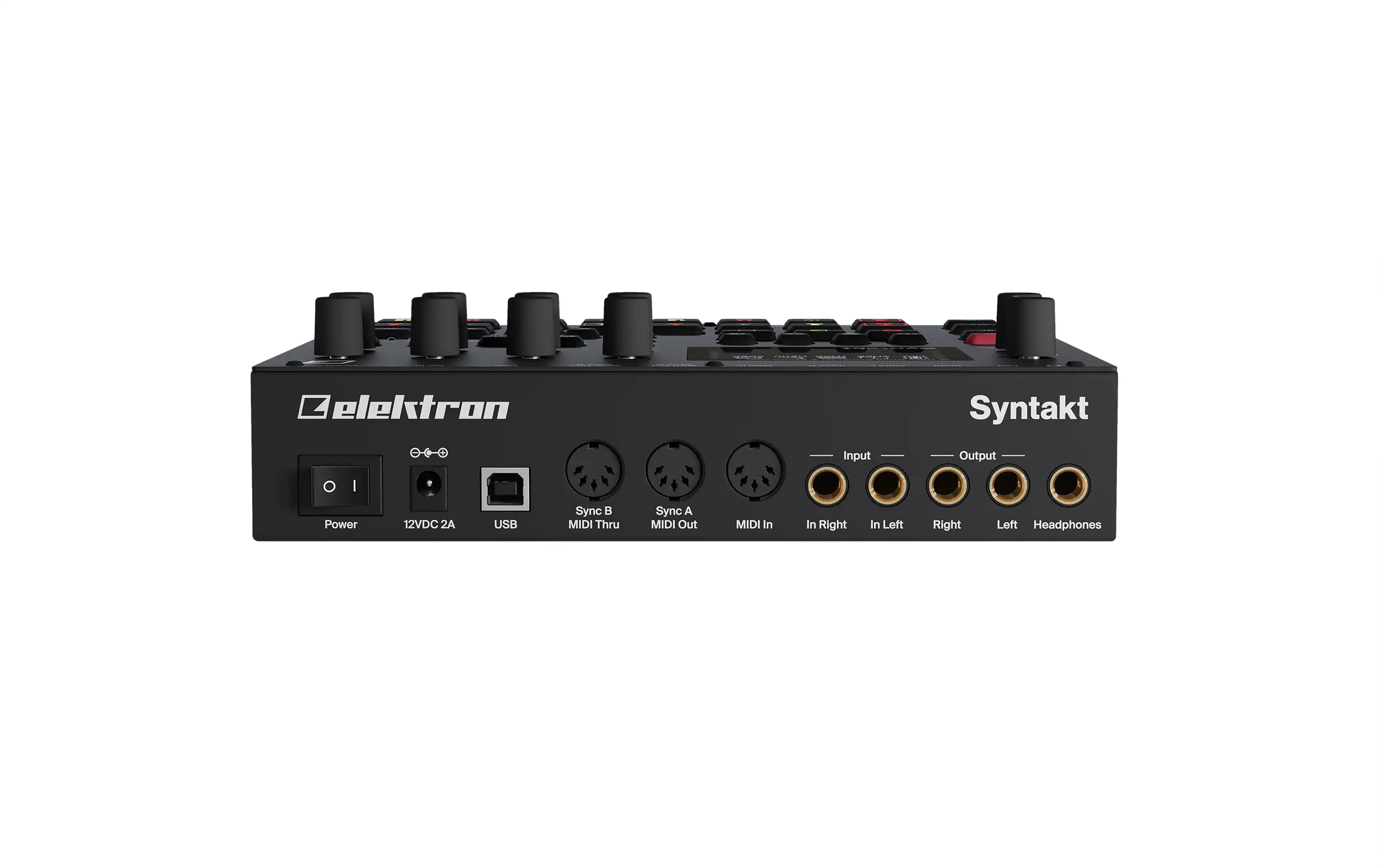

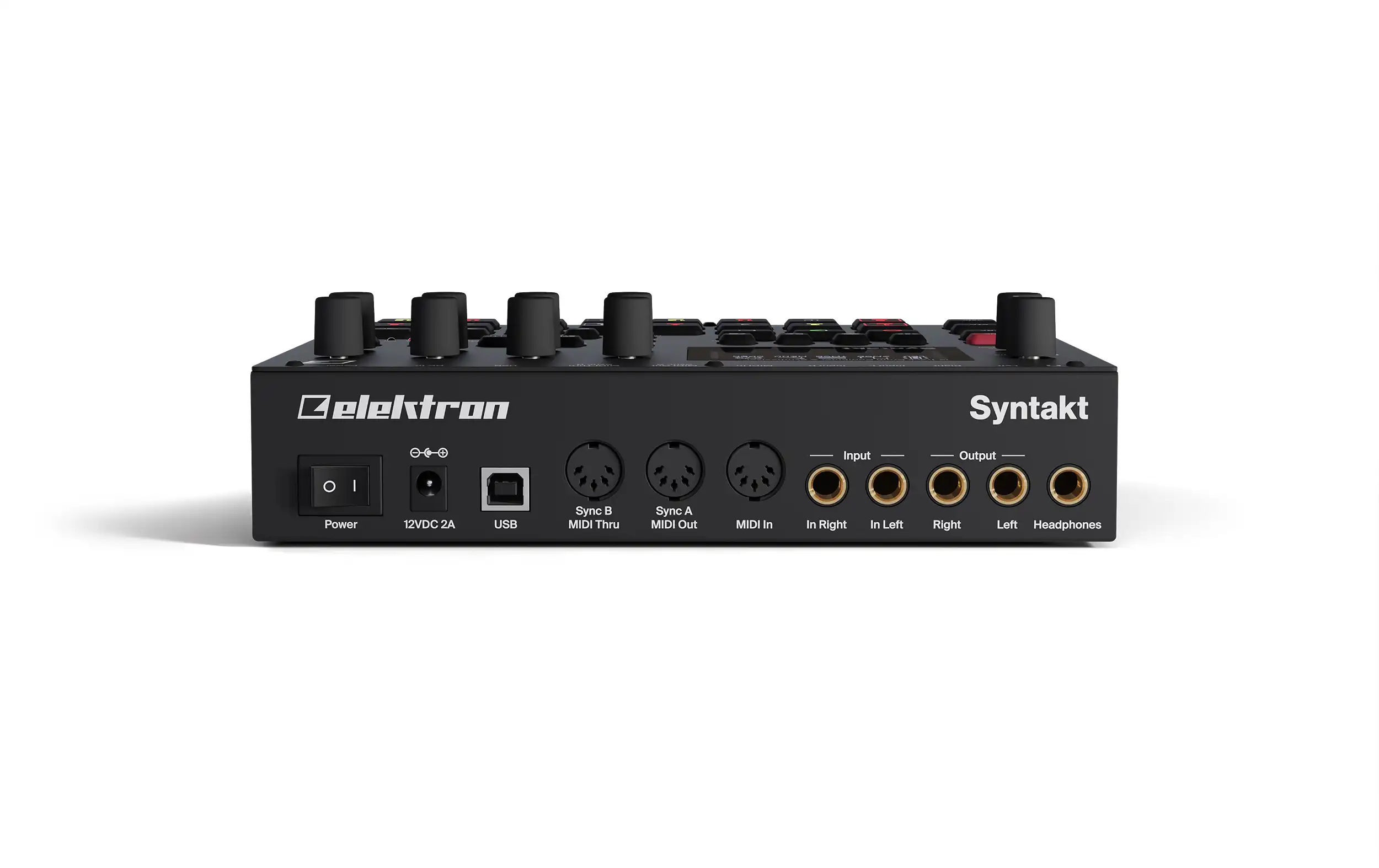

Hardware: 128 × 64 pixel OLED screen, 2 × ¼” impedance balanced audio out jacks, 2 × ¼” audio in jacks, 1 × ¼” stereo headphone jack, 48 kHz, 24-bit D/A and A/D converters, Hi-Speed USB 2.0 port, MIDI In/Out/Thru with DIN Sync out
Physical specifications: Sturdy steel casing, Dimensions, W 215 × D 176 × H 63 mm, Weight, approximately 1.53 kg (3.6 lbs), 100 × 100 mm VESA mounting holes. M4., Miscellaneous, Overbridge enabled, Class Compliant USB Audio, External Input mixer, 3 year Elektron warranty
Included in the box: Power Supply PSU-3c, Elektron USB cable, Quick Guide, Exclusive artwork & epic stickers, Specifications |
