Physical
Length: 485 mm (19.1 in.)
Width: 335 mm (13.2 in.)
Height: 242 mm (9.6 in.)
Height with hanging bracket: 333 mm (13.2 in.)
Weight, dry: 11.2 kg (24.7 lbs.)
Weight, filled: 13.7 kg (30.2 lbs.)
Performance
Coverage volume: 600 m3 (21,189 ft3) per minute
Fluid consumption (max.): 100 ml per minute Continuous effect
output Ready time: 7 minutes
Control and Programming Control options:
Integrated digital remote control, DMX, optional analog remote control, master/slave link mode, PLC (0-10V)
Control parameters:
Continuous or timer-controlled output Fog: Variable output control, 0-100% DMX channels: 1 External fluid control: Fluid sensing
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Construction
Housing: Steel and aluminum

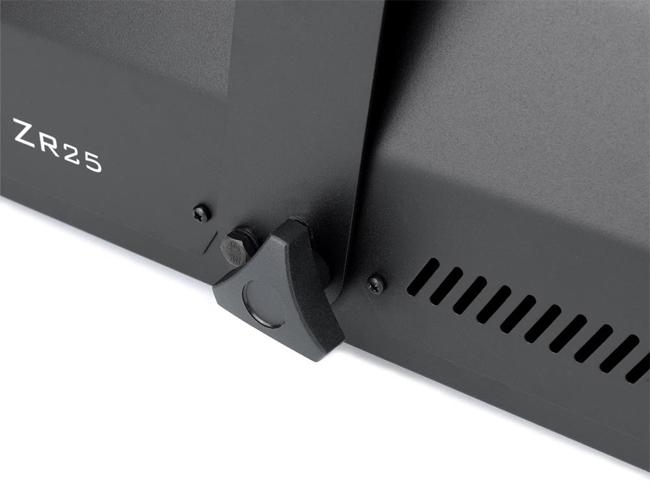

Hanging bracket: Integrated yoke with safety attachment point
Color: Black Heat exchanger: 1150 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
External fluid control: Fluid sensing
Remote control: Integrated digital remote with 3 m cable, 3-pin XLR connector
Installation Mounting: Standing or hanging Orientation: Up to +/-40° from horizontal
Clearance around machine: 100 mm (4 in.)

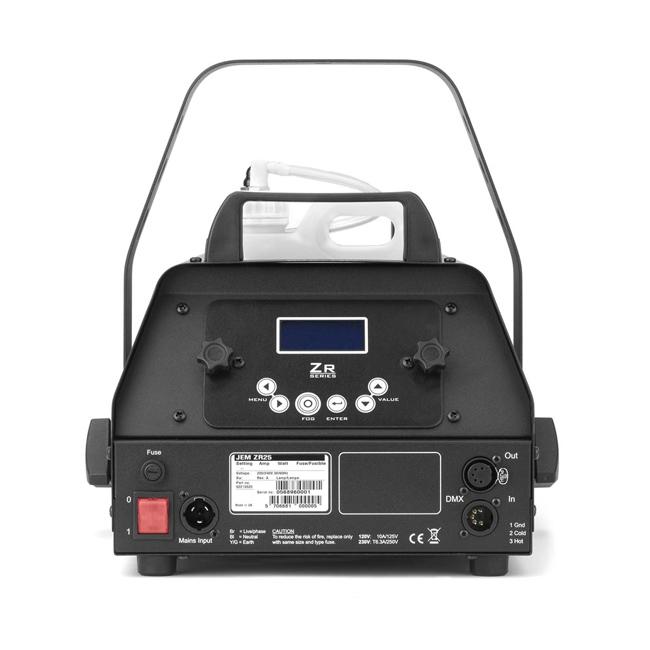

Connections
AC power: Neutrik PowerCON TRUE1
DMX and link mode in/out: 5-pin locking
XLR Remote control: 3-pin locking XLR
Firmware: AVR socket
Electrical
EU model AC power: 220-240 V nominal, 50/60 Hz Main fuse: 6.3 AT (slow blow), 250 V Typical power and current: 1200 W, 5.3 A* Allow for a deviation of +/- 10%.
Thermal
Maximum ambient temperature (Ta max.): 40° C (104° F)
Exterior surface temperature, steady state: 30° C (86° F)
Max. nozzle temperature: 290° C (554° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Approvals EU model EU safety: EN 60 335-1+A15, EN62233 EU EMC: EN 61000-6-3 EU immunity: EN 61000-6-1 Australia/NZ (pending): RCM US model US safety: UL 998 Canadian safety: CSA C.22.2 No. 104.01
[CE] [ETL C US Intertek] [C-Tick]
Included Items
Fluid reservoir, 2.5 l: P/N 34300521
JEM™ ZR Series Digital Remote Control: P/N 92765048
Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
Power input cable, US, 10 A, PowerCON TRUE1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N 11501044
Approved fluids
JEM™ Pro Smoke Studio JEM™ Pro Smoke Super JEM™ Pro Smoke High Density JEM™ I-Fog Fluid JEM™ Pro Clean Supreme

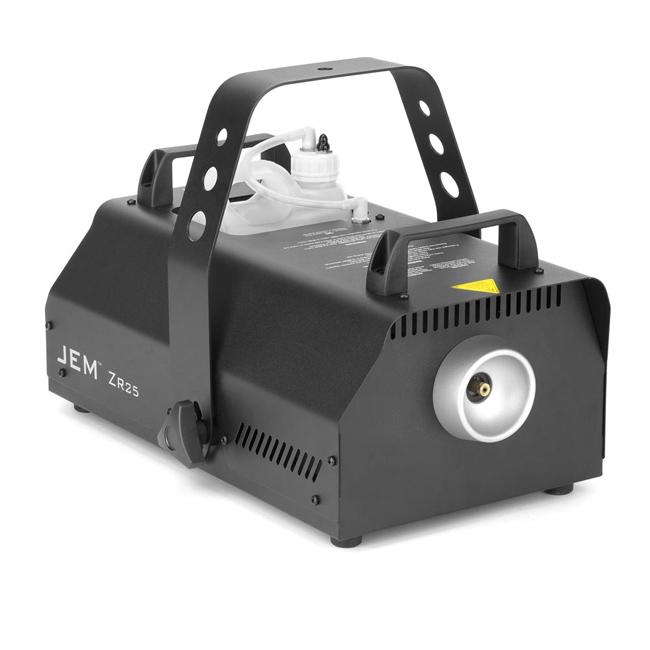

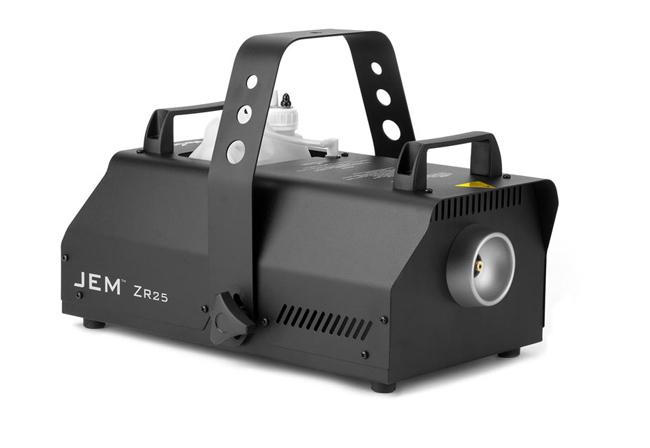

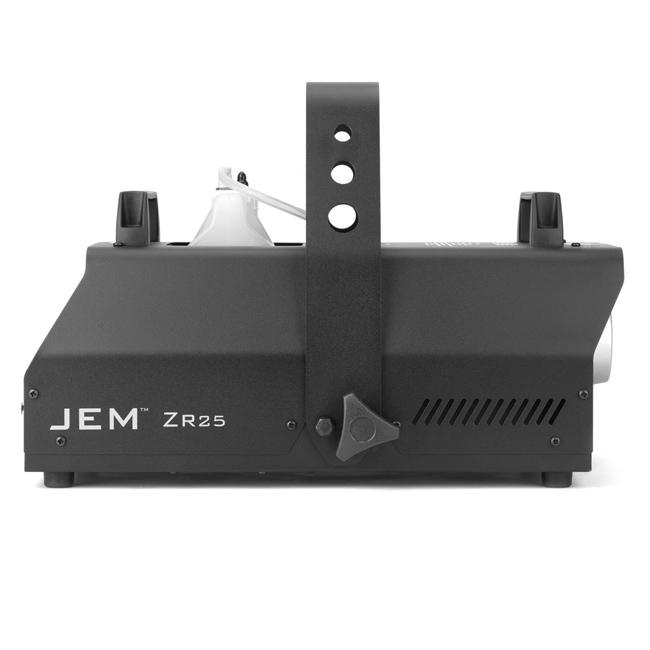

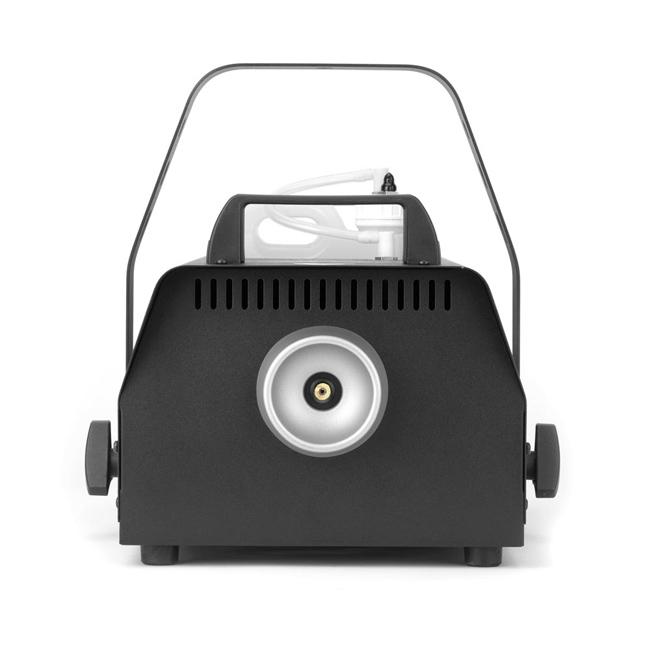

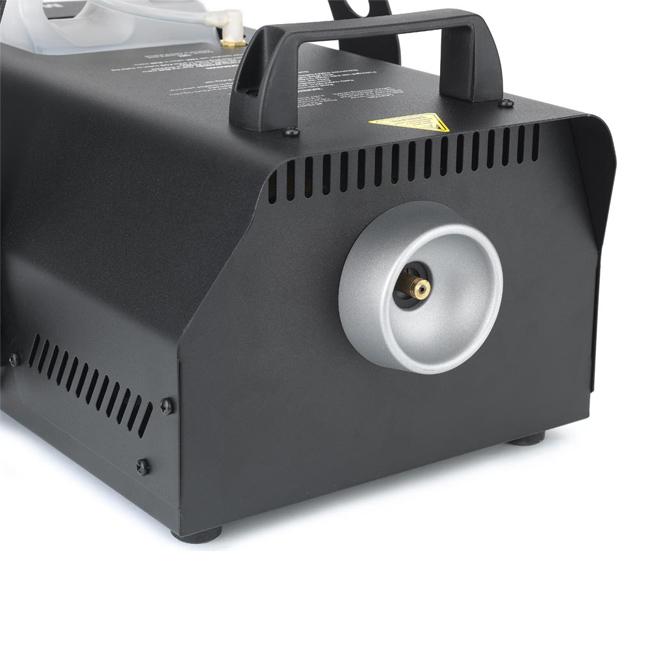

Nebelmaschine, 1150W, DMX, RDM, inkl. Remote
1150 Watt Heizelement
600 m³/min Nebelausstoss
Variable Ausstossmengenkontrolle für Effekte
7-8 Minuten Aufheizzeit
Digital Remote, DMX und RDM
Kompatibel mit vielen JEM Pro Fog Fluids
Inkl. Montagebügel
PowerCON TRUE1 Stromanschluss
2,5 Liter Tank
