Technische Daten
PHYSICAL DATA
Cabinet: Heavy-duty plastic
Keyboard: 61 keys with velocity
SOUNDS
Tone Generator: 128 Oscillators, Three band EQ for each track, Filters with resonance, DNC (Defin...
mehr lesen
PHYSICAL DATA
Cabinet: Heavy-duty plastic
Keyboard: 61 keys with velocity
SOUNDS
Tone Generator: 128 Oscillators, Three band EQ for each track, Filters with resonance, DNC (Defined Nuance Control)
Factory Sounds: More than 950, including Stereo Piano and GM Level 1 & 2 compatible sounds; 64 Drum Kits
User Sounds: 256 Sounds, 128 Drum Kits
Sound Edit: On-board full editing for Sounds and DrumKits
Sampling: Load/Import of Korg, Wav, AIFF and Soundfont; Export of Wav and AIFF; Edit, Time Slice PCM User Memory: 96 MB
Effects: 4 Master Stereo Digital Multi-Effects, 125 Effect types; Mastering Limiter and Final 4-band Parametric EQ
Keyboard Tracks: Four Keyboard tracks (Upper 1, 2, 3, Lower)
Performances / STS: 320 Performance locations, all programmable; Up to 4 STSs x Style, up to 4 x SongBook entry
STYLES
Factory Styles: More than 360 preloaded Styles, freely reconfigurable
Favorite/User Styles: 10 Favorite banks, plus 3 User banks, for a total of 1,120 Style locations (Factory + Favorite/User)
Arranger Tracks: Eight Style tracks, 4 Single Touch Settings (STS), 4 Pads and one Style Settings per Style, Guitar Track Mode 2, Parallel and Fixed
NTT
Style Edit: Style Record with Step Record, Track and Event Edit functions, Import/Export SMF
Patterns/Chord Variations: Up to 46 patterns for each Style, including 3 Intros, 4 Variations, 4 Fills, 1 Break, 3 Endings
Style Controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Auto Fill, Synchro Start/Stop, Manual Bass, Memory, Accompaniment On/Off,
Single Touch
Chord Sequencer: Realtime Style Chord Sequence Recorder
PLAYER/SEQUENCER
Player: Player with Song Select, Start/Stop, Home, Rewind, Fast Forward controls; Supported formats: MID, MID+G, KAR, MP3 + lyrics,
MP3+G; Lyrics, Score, and Chord data can be displayed on screen; Markers; Jukebox function
4 STS saved with the Song: In SongBook Mode
Tracks: 16
Sequencer: Edit Record & Edit functions; SMF native format
Backing Sequence (Quick Record): Real Time Record - Step Record & Edit
Lyrics/Chords: On-Screen (compatible with most popular formats); +G format supported
Score View: On-screen
Markers: On-screen
SONGBOOK
SongBook and SongBook List: Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes; User-definable custom lists; Filtering and Ordering options
OTHER FEATURES
MP3: MP3 Player in Song Play mode; Vocal Remover; Tempo change ±30%, Transpose -5~+6 semitones
Quarter Tone / Arabic Scale: Programmable, with up to 4 SC Presets Programmable, with up to 4 SC Presets; Dedicated Quarter
Tone keypad
Pads: 4 + Stop button
Compatibility: i-Series: Styles (some adjustments may be needed); Pa-series: Style, Pad, Performance, Sound, PCM Sample, Song, SongBook
Operating System RX (Real eXperience), DNC (Defined Nuance Control), Multitasking system, Load while play feature, Upgradable, Internal clock
DATA STORAGE
Internal: Memory Standard
USB Port for Memory Devices Yes - 1 Host (2.0 Hi Speed)
USER INTERFACE
Display: 7" 800 x 480 TFT Graphical Color Touch Screen Display
Controls: Dial, Master Volume, Accompaniment/Player/Keyboard Volume Balance, Transpose, Octave Transpose, Ensemble, Tap Tempo/Reset, Tempo+/-, Tempo Lock, Fade In/Out
Programmable Controls: Joystick, 2 Switches, Assignable Pedal/Footswitch

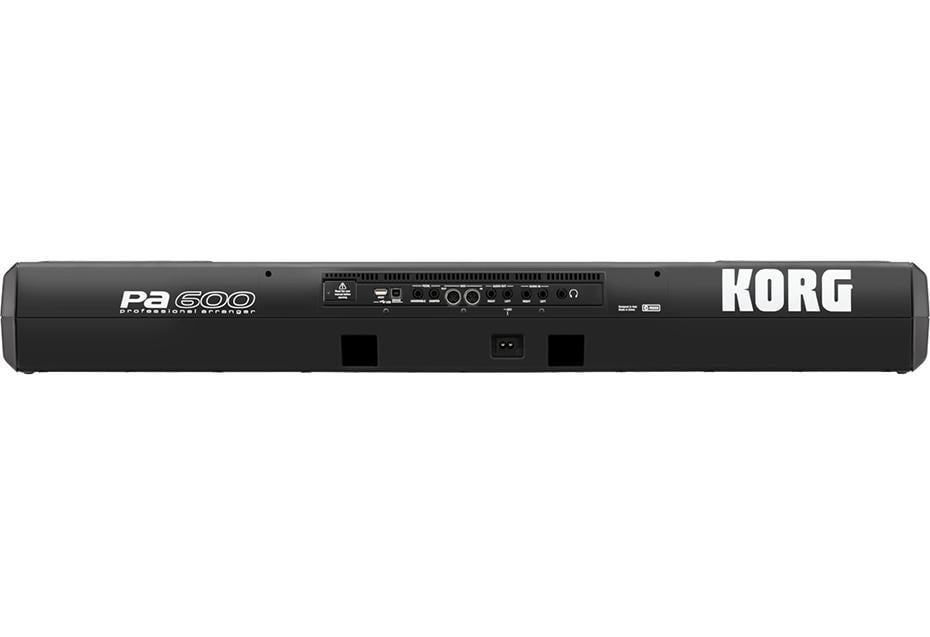

CONNECTIONS
MIDI IN, OUT
USB 1 Host (2.0 Hi Speed) and 1 Device (2.0 Hi Speed); MIDI Over USB
Outputs: 2 Analog (Left/Right)
Inputs: 2 Analog (Left/Right)
Headphone: 1 jack connection
Pedals: 1 Damper, 1 Assignable Pedal/Footswitch
Power Supply AC - Universal Voltage
AMPLIFICATION
Amplification and Speakers: 2 Channel Amplification System; 2x15 Watt; 2 x 100 mm Double-Cone Speakers in Bass Reflex Box
ACCESSORIES
Supplied Accessories: Manual, AC Power Cable, Music Stand, DVD
OPTIONS
USB Memory Yes
Volume/Expression Pedal KORG EXP-2, KORG XVP-10, VOX V860
Damper Pedal KORG DS-1H
Footswitch KORG PS-1, PS-3
PHYSICAL DATA
Consumption 20 Watt
Dimensions (W x D x H) 1030 x 378 x 127 mm / 40.55 x 14.88 x 5.00 inch without music stand
Weight 9.74 kg / 21.47 lbs 9.8 kg / 21.61 lbs
Entertainer-Workstation
61 anschlagdynamische Tasten
KORG EDS-Klangerzeugung (Enhanced Definition Synthesis)
128 Stimmen mit neuem Polyphoniemanager (wie Pa3X)
8 Style-Spuren, 4 Single Touch-Einstellungen und 4 Pads pro Style
Über 950 Sounds (inklusive neuem Stereo Piano und neuen GM 2 Sounds)
64 Drum Kits
360 Styles
Gitarren Modus 2
Druckempfindliches 7" TFT TouchView-Farbdisplay
MP3 Player mit Echtzeittransponierung (+6/-5 Halbtöne)
4 definierbare Pads + Stop-Taster, „Pad Record“-Funktion
Verstärkerleistung
