	Synthesizer Module & Expander

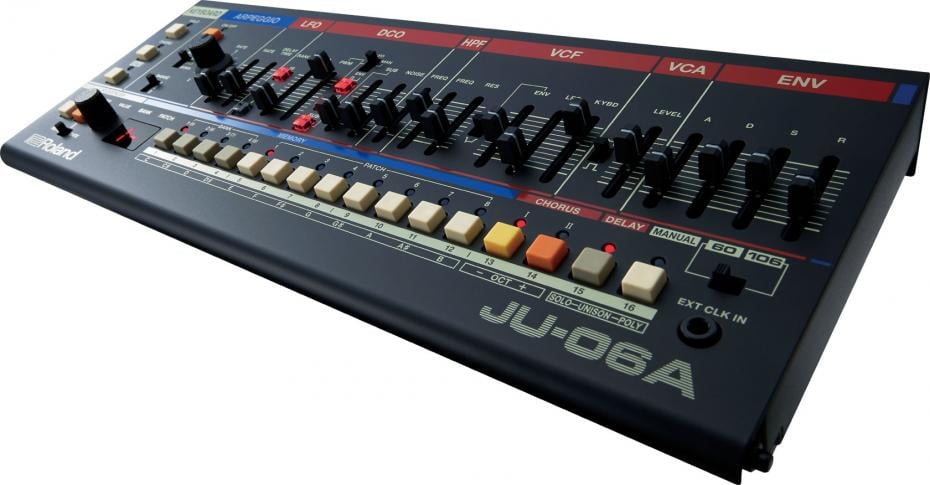

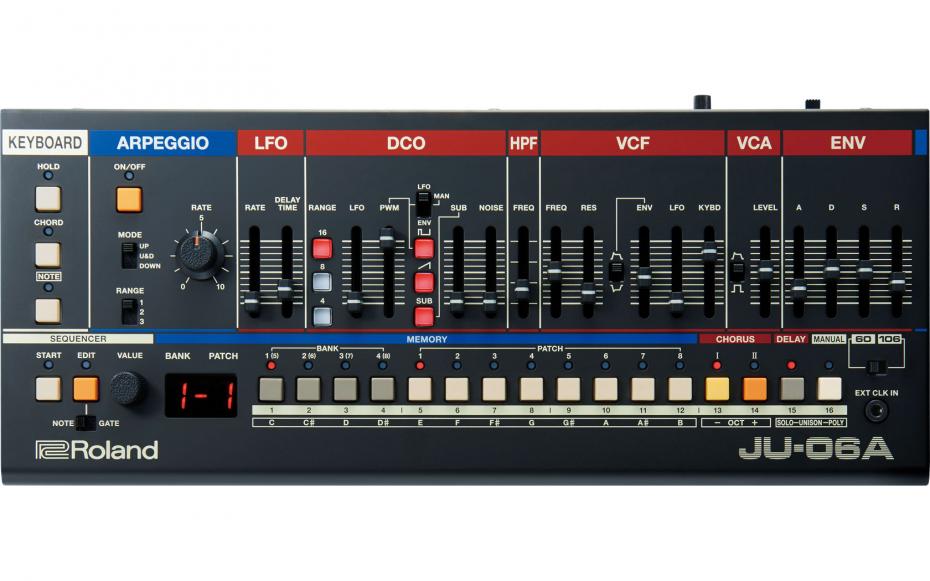

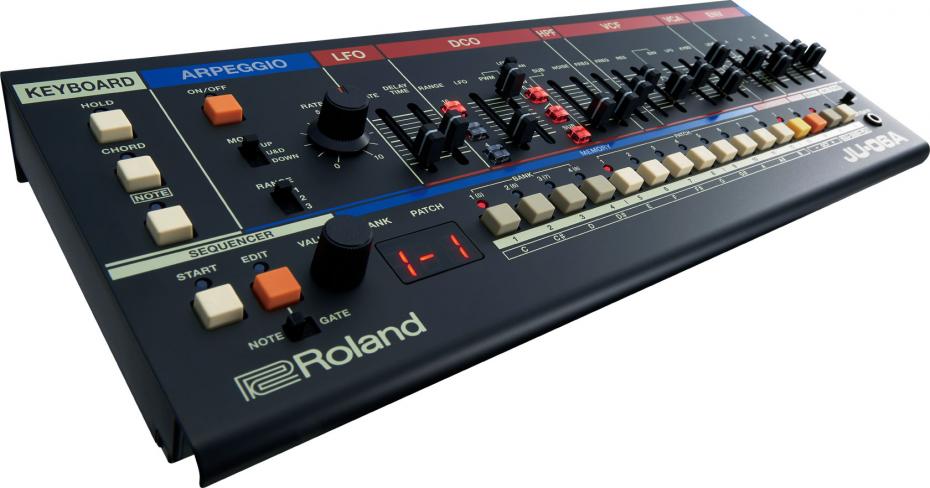

Roland Boutique JU-06-A

Synthesizer

Hersteller-Infos anzeigen

lagernd, Lieferzeit lt Versandinfo

€ 395,00 *)

UVP: € 448,00

Marke
Roland

Artikel Nummer
S1103548

Versandgewicht
2kg

Varianten
Marke: Roland
Artikel Nummer: S1103548
Versandgewicht: 2kg

IN DEN WARENKORB

Frage zum Produkt

Vollständige Beschreibung

Informationen vom Hersteller

Technische Daten

Sound Generator Section Maximum Polyphony: 4 voices Sound Mode: 2 types (60/106) User Memory Sound Patch: 64 + 64 (8 patches x 8 banks pre each 60 and 106 mode) Sequencer Pattern:...
mehr lesen

Sound Generator Section Maximum Polyphony: 4 voices Sound Mode: 2 types (60/106) User Memory Sound Patch: 64 + 64 (8 patches x 8 banks pre each 60 and 106 mode) Sequencer Pattern: 16 Chord Memory: 16 Controllers VOLUME knob LFO Section RATE slider DELAY TIME slider DCO Section RANGE buttons 16?, 8?, 4? LFO slider PWM slider PWM mode switch SQUARE, SAW, SUB buttons SUB oscillator slider NOISE slider HPF Section CUTOFF FREQ slider VCF Section CUTOFF FREQ slider RESONANCE slider Polarity switch ENV slider LFO slider KEY FOLLOW slider VCA Section Control signal switch VCA level slider ENV Section Attack Time slider Decay Time slider Sustain Level slider Release Time slider CHORUS Section CHORUS 1, CHORUS 2 buttons DELAY Section DELAY button KEYBOARD Section HOLD button CHORD button NOTE button ARPEGGIO Section ON/OFF button MODE switch (UP/U&D/DOWN) RANGE switch (1/2/3) RATE knob SEQUENCER Section START button EDIT button VALUE knob NOTE/GATE select switch Sound Mode select switch (60/106) BANK 1 (5)–4 (8) buttons PATCH NUMBER 1–8 buttons MANUAL button Power switch Effects Chorus: 2 Delay Step Sequencer 16 steps 1 note (Monophonic) Display 7 segments, 3 characters (LED) Connectors EXT CLOCK IN jack: Mono miniature phone type PHONES jack: Stereo miniature phone type OUTPUT jack: Stereo miniature phone type MIX IN jack: Stereo miniature phone type MIDI (IN, OUT) connectors USB port: MicroB type (Audio, MIDI) Power Supply Ni-MH battery (AA, HR6) x 4 Alkaline battery (AA, LR6) x 4 USB bus power Current Draw 500 mA (USB bus power) Expected battery life under continuous use Ni-MH battery: Approx. 6 hours * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. Accessories Owner?s Manual Leaflet "USING THE UNIT SAFELY" Alkaline battery (AA, LR6) x 4 Options (sold separately) Keyboard unit: K-25m Boutique Dock:DK-01 Size and Weight Width 300 mm 11-13/16 Depth 128 mm 5-1/16 inches Height 49 mm 1-15/16 inches Weight (including batteries) 995 g 2 lbs 4 oz

Weitere Eigenschaften

MIDI I/O	5485;5486
USB Anschluss	Nein
USB Powered	Nein
CV Anschlüsse	5492
Lautsprecher	Nein
Klangerzeugung	5490
Stimmen	Polyphon
