Technische Daten
Specifications
Maximum Polyphony 8 voice
LFO WAVEFORM (SIN, SQR, RANDOM)
Rate
Delay
KEY TRIGGER SW(ON, OFF)
TRIGGER ENVELOPE SW(ON, OFF)
DCO-1 WAVEFORM (SAW, SQR, PULSE)
RANGE (64', 32', 16...
mehr lesen
Specifications
Maximum Polyphony 8 voice
LFO WAVEFORM (SIN, SQR, RANDOM)
Rate
Delay
KEY TRIGGER SW(ON, OFF)
TRIGGER ENVELOPE SW(ON, OFF)
DCO-1 WAVEFORM (SAW, SQR, PULSE)
RANGE (64', 32', 16', 8', 4', 2')
LFO MOD
ENV-1 MOD
DCO-2 WAVEFORM (SAW, SQR, PULSE, WHITENOISE)
RANGE (64', 32', 16', 8', 4', 2')
TUNE
FINE TUNE
LFO MOD
ENV-1 MOD
VCF SOURCE MIX DCO-1
SOURCE MIX DCO-2
CUTOFF FREQ
RESONANCE
PITCH FOLLOW
VELOCITY SENS
HPF CUTOFF FREQ
LFO MOD
ENV-1 MOD
VCA VELOCITY SENS
BRILLIANCE
MODE (ENV-1, ENV-2, GATE)
LEVEL
ENV-1 ATTACK
DECAY
SUSTAIN
RELEASE
ENV-2 ATTACK
DECAY
SUSTAIN
RELEASE
EFFECT TYPE (OVERDRIVE, DISTORTION, JX-3P CHORUS1, FUZZ, CRUSHER, PHASER)
TONE
DEPTH
DELAY TYPE (DELAY, PANNING DELAY, CHORUS 1, CHORUS 2, FLANGER, DELAY + CHORUS)
TIME
LEVEL
REVERB TYPE (AMBIENCE, ROOM, HALL 1, HALL 2, PLATE, MODULATION)
TIME
LEVEL
Controller BEND SENS PITCH
BEND SENS FILTER
MOD SENS PITCH
MOD SENS FILTER
PORTAMENTO
LEGATO (ON, OFF)
BEND RANGE
BEND GAIN (1, 2, 3, 4)
TEMPO SYNC (ON, OFF)
KEY ASSIGN (POLY, MONO, UNISON)
KEY HOLD (ON, OFF)
OCTAVE (-3, -2, -1, 0, +1, +2, +3)
CONDITION
Arpeggio ARPEGGIO (ON, OFF)
ARP TYPE (1OCT UP, 1OCT U+D, 1OCT DOWN, 2OCT DOWN, 2OCT U+D, 2OCT UP)
ARP STEP (1/4, 1/8, 1/16, 1/4T, 1/8T, 1/16T)
Tune 430.0Hz--450.0Hz
Sampling Frequency 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Patches per bank 64 patches
*User can make new user banks.
Plug-In Formats VSTi 2.4 (64 bits) * Windows only
VSTi 3.6 (64 bits)
AU
AAX
System Requirements (macOS™)
Operating System macOS 10.14
macOS 10.15
macOS 11
Host Application VST instruments (VSTi) version: VST 3.6 compatible
Audio Units (AU) version: V2 Audio Units compatible
AAX compatible
CPU Intel® Core™ i5 or better (Quad-core CPU recommended), Apple silicon compatible
RAM 4 GB or more
Hard Disk 100 MB or more
Display resolution and Colors 1280 x 800 dots or higher, 16.7 million colors or more
Other You'll need Internet connectivity to activate this software.
The SYSTEM-8 driver must be installed on your computer to connect this software to the SYSTEM-8.
System Requirements (Windows®)
Operating System1 Microsoft® Windows® 8.1 (64-bit)
Microsoft® Windows® 10 (64-bit)
*This does not work with the Windows® RT.
*This does not work with the Windows® Phone.
*This does not work on the virtual machines such as Hyper-V, Virtual PC, or Boot Camp.
Host Application VST instruments (VSTi) version: VST 2.4/3.6 compatible
AAX compatible
PLUG-OUT Hardware2 SYSTEM-8
CPU Intel® Core™ i5 or better (Quad-core CPU recommended)
RAM 4 GB or more
Hard Disk 100 MB or more
Display resolution and Colors 1280 x 800 dots or higher, 24 bits Full Color or more
Other You'll need Internet connectivity to activate this software.
You'll need Adobe Reader (available free of charge) in order to read the online help.
The SYSTEM-8 driver must be installed on your computer to connect this software to the SYSTEM-8.

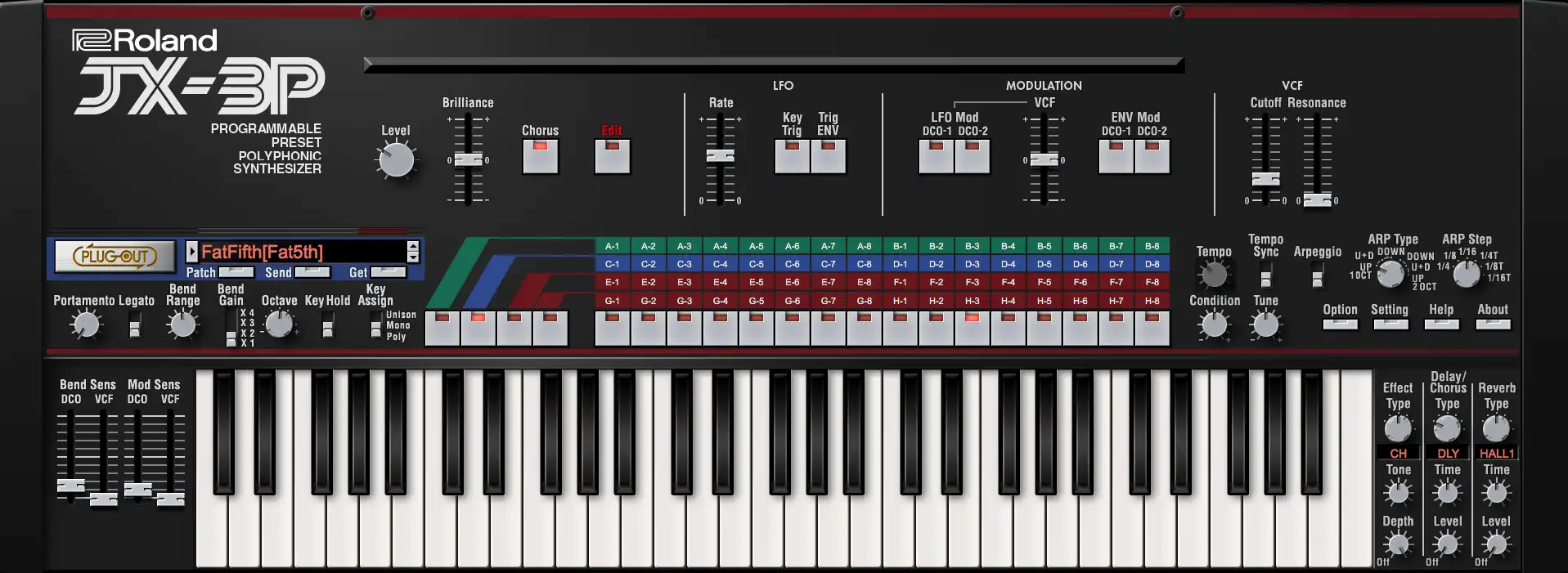

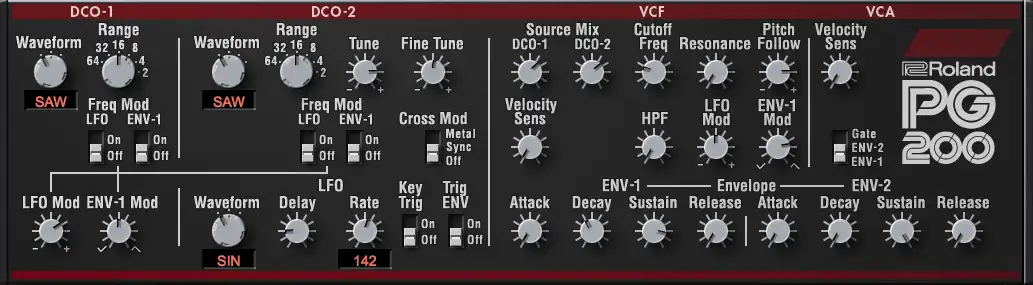

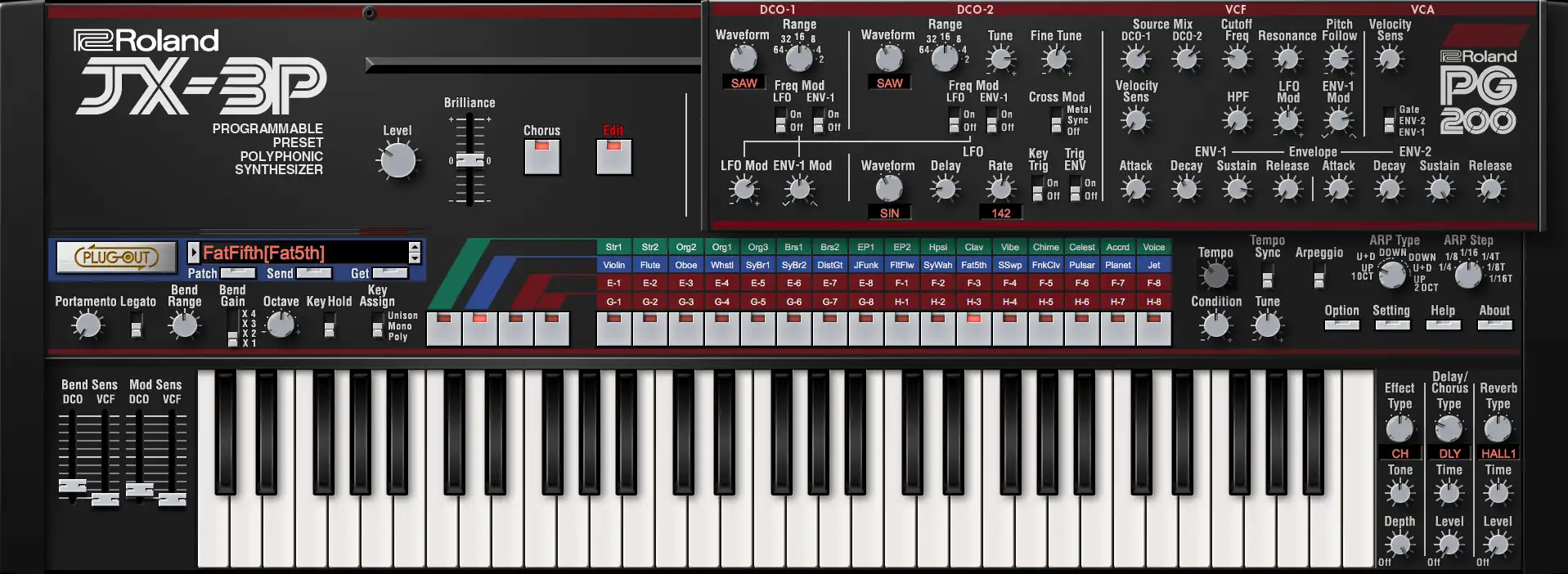

Verwende das Plug-In wahlweise wie die Original-Hardware oder tauche mit dem virtuellen PG-200 Programer tief in die Soundgestaltung ein
Condition-Regler zur Anpassung des JX-3P Sounds – von clean über warm bis schmutzig
Zwei vollständig anpassbare Hüllkurven
Achtstimmige Polyphonie
Integrierter Arpeggiator, synchronisiert mit deiner DAW
Originaler JX-3P Chorus sowie moderner Reverb und temposynchrones Delay
