Technische Daten
Specifications
Maximum Polyphony 1 voice
VCO Range (64', 32', 16', 8', 4', 2')
Pulse Width Modulation (50%--min)
PWM Mode switch (MANUAL, LFO, VCF ENV, VCA ENV)
Modulation Depth (-min--+max)
T...
mehr lesen
Specifications
Maximum Polyphony 1 voice
VCO Range (64', 32', 16', 8', 4', 2')
Pulse Width Modulation (50%--min)
PWM Mode switch (MANUAL, LFO, VCF ENV, VCA ENV)
Modulation Depth (-min--+max)
Tune (+/-50 cent)
Source Mixer Square/Pulse wave Level
Saw wave Level
SUB Oscillator Level
SUB Oscillator Waveform switch
(1Oct Down Square, 2Oct Down Square, 2Oct Down Pulse)
Noise Level
VCF Cutoff Frequency (10 Hz--20 kHz)
Resonance (0--Self oscillation)
ENV Depth (-100%--+100%)
Modulation Depth
Key Follow (-100%--+100%)
VCF ENV Attack Time (1.5 ms--4 s)
Decay Time (2 ms--10 s)
Sustain Level (0--100%)
Release Time (2 ms--10 s)
VCA VCA Mode (ENV, GATE)
Tone
VCA ENV Attack Time (1.5 ms--4 s)
Decay Time (2 ms--10 s)
Sustain Level (0--100%)
Release Time (2 ms--10 s)
Gate-Trigger switch (GATE, LFO, GATE+TRIG)
Effect Crusher Depth
Reverb Level
Delay Level
Delay Time
Modulator LFO/CLK Rate (0.1 Hz--30 Hz)
Waveform (SIN, TRI, SAW, SQR, RANDOM, NOISE)
Controller Volume
Portamento Time (0--5 s)
Portamento Mode (ON, AUTO, OFF)
Bend Range (VCO)
Tempo Sync switch
Arpeggio Arpeggio Switch
Arpeggio Type (1Oct Up, 1Oct U+D, 1Oct Down, 2Oct Down, 2Oct U+D, 2Oct Down)
Arpeggio Step (1/4, 1/8, 1/16, 1/4T, 1/8T, 1/16T)
Sampling Frequency 44.1 kHz, 88.2 kHz, 176.4 kHz, 48 kHz, 96 kHz, 192 kHz
Tones 64 patches/1 bank
*User can make new user banks.
Plug-In Formats VSTi 3.6 (32bit/64bit), AU
Plug-Out Hardware SYSTEM-1
System Requirements (macOS™)
Operating System macOS 10.14
macOS 10.15
macOS 11
Host Application VST instruments (VSTi) version: VST 3.6 compatible
Audio Units (AU) version: Audio Units V2 compatible
AAX Compatible
CPU Intel® Core™ i5 or better
Apple M1 chip
RAM 4 GB or more
Hard Disk 100 MB or more
Display resolution and Colors 1280 x 800 dots or higher, 16.7 million colors or more
Other You'll need Internet connectivity to activate this software.
You'll need installation SYSTEM-1 driver to plug-out this software to the SYSTEM-1.
System Requirements (Windows®)
Operating System Microsoft® Windows® 8.1 (64-bit)
Microsoft® Windows® 10 (64-bit)
*This does not work with the Windows® RT.
*This does not work with the Windows® Phone.
*This does not work on the virtual machines such as Hyper-V, Virtual PC, or Boot Camp.
Host Application VST instruments (VSTi) version: VST 2.4/3.6 compatible
AAX Compatible
CPU Intel® Core™ i5 or better
RAM 2 GB or more
Hard Disk 100 MB or more
Display resolution and Colors 1280 x 800 dots or higher, 24 bits Full Color or more
Other You'll need Internet connectivity to activate this software.
You'll need Adobe Reader (available free of charge) in order to read the online help.
You'll need installation SYSTEM-1 driver to plug-out this software to the SYSTEM-1.
Eigenständige Filter-Hüllkurve
Zwei zusätzliche LFO-Kurven
Erweiterte Oktavbandbreite für den VCO
VCA-Klangregelung
Moderne Effekte, Reverb, Bit-Crusher und temposynchrones Delay
Integrierter Arpeggiator mit Temposynchronisierung

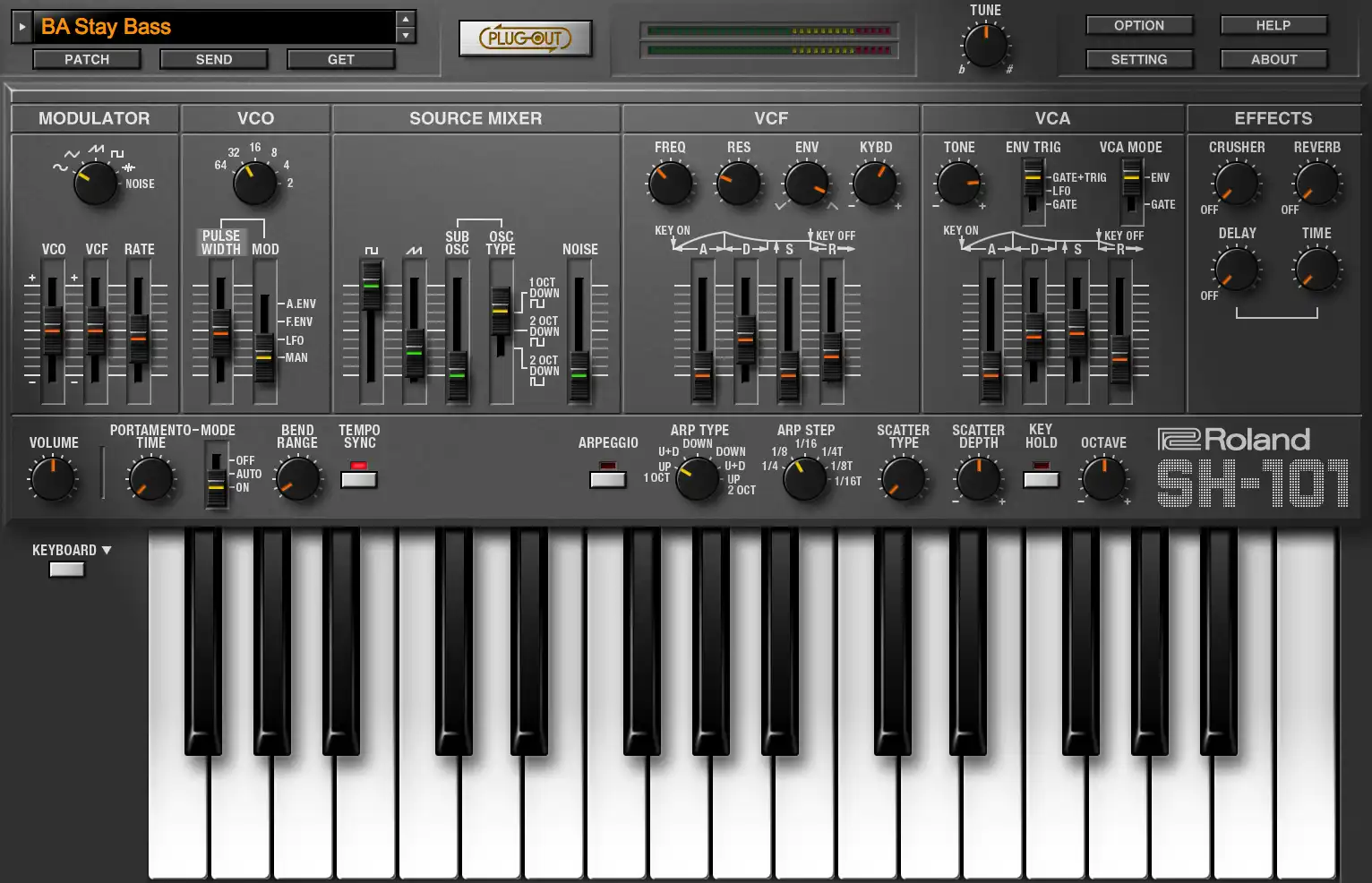

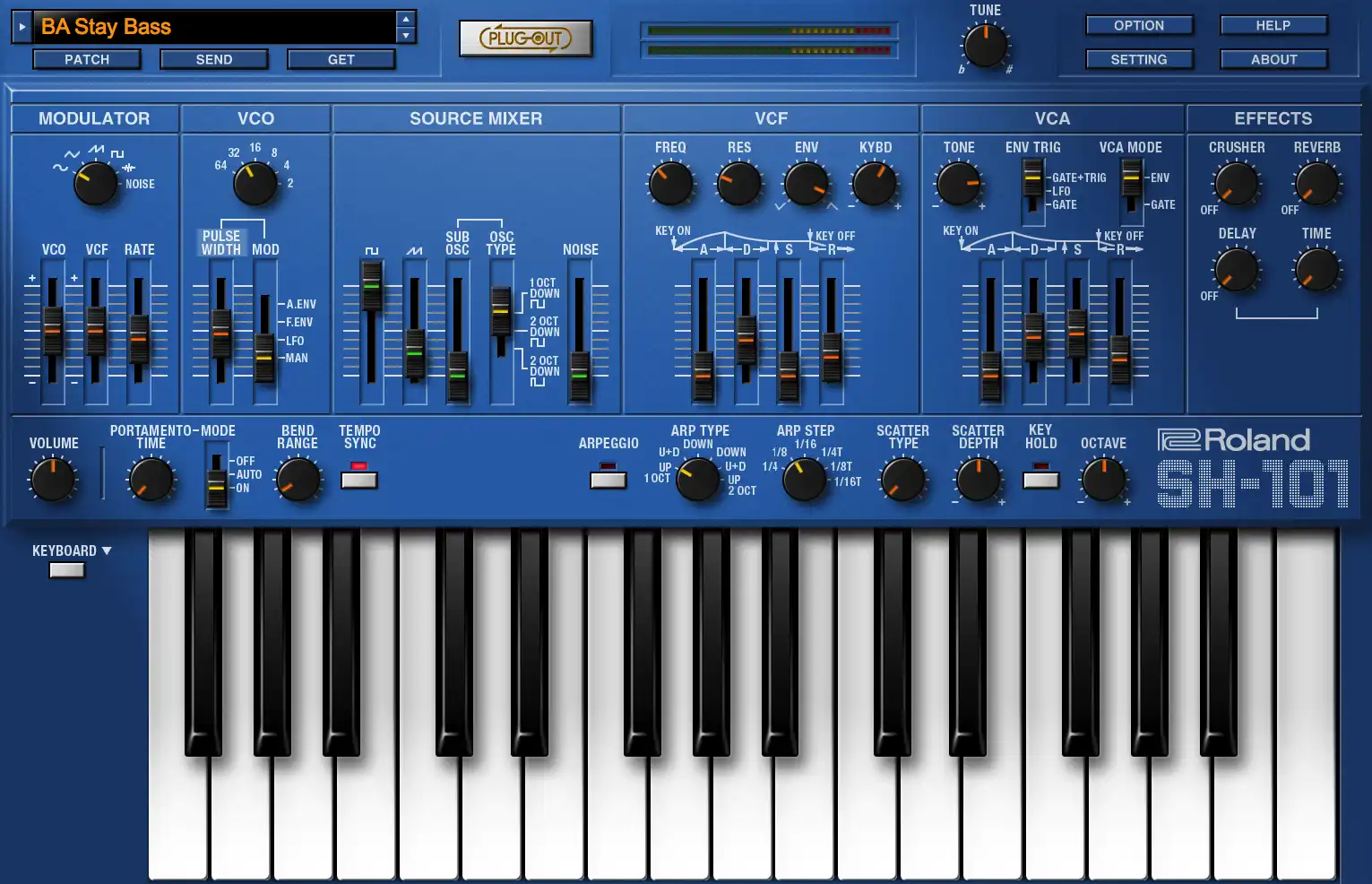

Mehrere Skins inklusive den drei Originalfarben
