Technische Daten
Specifications
Maximum Polyphony 8 voice
LFO Variation (1, 2, 3)
Waveform:
: SINE, TRIANGLE, SAW, SQUARE, Sample&Hold, Random
: 6 types (Dual LFO)
: 6 ty...
mehr lesen
Specifications
Maximum Polyphony 8 voice
LFO Variation (1, 2, 3)
Waveform:
: SINE, TRIANGLE, SAW, SQUARE, Sample&Hold, Random
: 6 types (Dual LFO)
: 6 types (Resonanced Pulse LFO)
FADE TIME
RATE
PITCH
FILTER
AMP
KEY TRIGGER (ON, OFF)
TRIGGER ENVELOPE (ON, OFF)
OSC1 Variation (1, 2)
Waveform:
: SAW, SQUARE, TRIANGLE, SAW2, SQUARE2, TRIANGLE2
: Noise Saw, Logic Operation, FM, FM+SYNC, Vowel, CB
COLOR
MODULATION Source (MANUAL, LFO, P.ENV, F.ENV, A.ENV, OSC 3)
OCTAVE (64, 32, 16, 8, 4, 2)
COARSE TUNE
FINE TUNE
CROSS Modulator
OSC2 Variation (1, 2)
Waveform:
: SAW, SQUARE, TRIANGLE, SAW2, SQUARE2, TRIANGLE2
: Noise Saw, Logic Operation, FM, FM+SYNC, Vowel, CB
COLOR
MODULATION Source (MANUAL, LFO, P.ENV, F.ENV, A.ENV, OSC 3)
OCTAVE (64, 32, 16, 8, 4, 2)
COARSE TUNE
FINE TUNE
RING Modulator (ON, OFF)
Oscillator SYNC (ON, OFF)
OSC3/SUB OSC Waveform (SINE -2 octave, SINE -1 octave, SINE, TRIANGLE, TRIANGLE -1 octave, TRIANGLE -2 octave)
COLOR
TUNE
Mixer OSC 1
OSC 2
OSC 3/SUB OSC
NOISE
NOISE TYPE (WHITE Noise, PINK Noise)
Pitch ENVELOPE Depth
ATTACK Time
DECAY Time
Filter Variation (1, 2, 3)
Filter Type:
: LPF (-24 dB), LPF (-18 dB), LPF (-12 dB), HPF (-12 dB), HPF (-18 dB), HPF (-24 dB),
: 6 types (Side Band Filter)
CUTOFF
RESONANCE
VELOCITY SENS
ENVELOPE Depth
KEY Follow
HPF CUTOFF
ATTACK Time
DECAY Time
SUSTAIN LEVEL
RELEASE Time
Amplifier VELOCITY SENS
TONE
LEVEL
ATTACK Time
DECAY Time
SUSTAIN LEVEL
RELEASE Time
Effect Type (OVERDRIVE, DISTORTION, METAL, FUZZ, CRUSHER, PHASER)
TONE
DEPTH
Delay/Chorus Type (DELAY, PANNING DELAY, CHORUS 1, CHORUS 2, FLANGER, DELAY + CHORUS)
TIME
LEVEL
Reverb Type (AMBIENCE, ROOM, HALL 1, HALL 2, PLATE, MODULATION)
TIME
LEVEL
Controller BEND SENS PITCH
BEND SENS FILTER
MOD SENS PITCH
MOD SENS FILTER
PORTAMENTO
LEGATO (ON, OFF)
BEND RANGE
BEND GAIN (1, 2, 3, 4)
TEMPO SYNC (ON, OFF)
KEY ASSIGN (POLY, MONO, UNISON)
KEY HOLD (ON, OFF)
OCTAVE (-3, -2, -1, 0, +1, +2, +3)
CONDITION
Arpeggio ARPEGGIO (ON, OFF)
ARP TYPE (1OCT UP, 1OCT U+D, 1OCT DOWN, 2OCT DOWN, 2OCT U+D, 2OCT UP)
ARP STEP (1/4, 1/8, 1/16, 1/4T, 1/8T, 1/16T)
Sampling Frequency 44.1 kHz, 48 kHz
Tune 430.0 Hz--450.0 Hz
Patches per bank 64 preset
Plugin-Formats VSTi 2.4 (32 bits, 64 bits) * Windows only
VSTi 3.6 (32 bits, 64 bits)
AU
AAX
System Requirements (macOS™)
Operating System macOS 10.14
macOS 10.15
macOS 11
Host Application VST instruments (VSTi) version: VST 3.6 compatible
Audio Units (AU) version: Audio Units V2 compatible
AAX compatible
CPU Intel® Core™ i5 or better (Quad-core CPU recommended), Apple silicon compatible
RAM 4 GB or more
Hard Disk 100 MB or more
Display resolution and Colors 1280 x 800 dots or higher, 16.7 million colors or more
Other You'll need Internet connectivity to activate this software.
The SYSTEM-8 driver must be installed on your computer to connect this software to the SYSTEM-8.
System Requirements (Windows®)
Operating System1 Microsoft® Windows® 8.1 (64-bit)
Microsoft® Windows® 10 (64-bit)
*This does not work with the Windows® RT.
*This does not work with the Windows® Phone.
*This does not work on the virtual machines such as Hyper-V, Virtual PC, or Boot Camp.
Host Application VST instruments (VSTi) version: VST 2.4/3.6 compatible, AAX Compatible
CPU Intel® Core™ i5 or better (Quad-core CPU recommended)
RAM 4 GB or more
Hard Disk 100 MB or more
Display resolution and Colors 1280 x 800 dots or higher, 24 bits Full Color or more
Other You'll need Internet connectivity to activate this software.
You'll need Adobe Reader (available free of charge) in order to read the online help.
The SYSTEM-8 driver must be installed on your computer to connect this software to the SYSTEM-8.

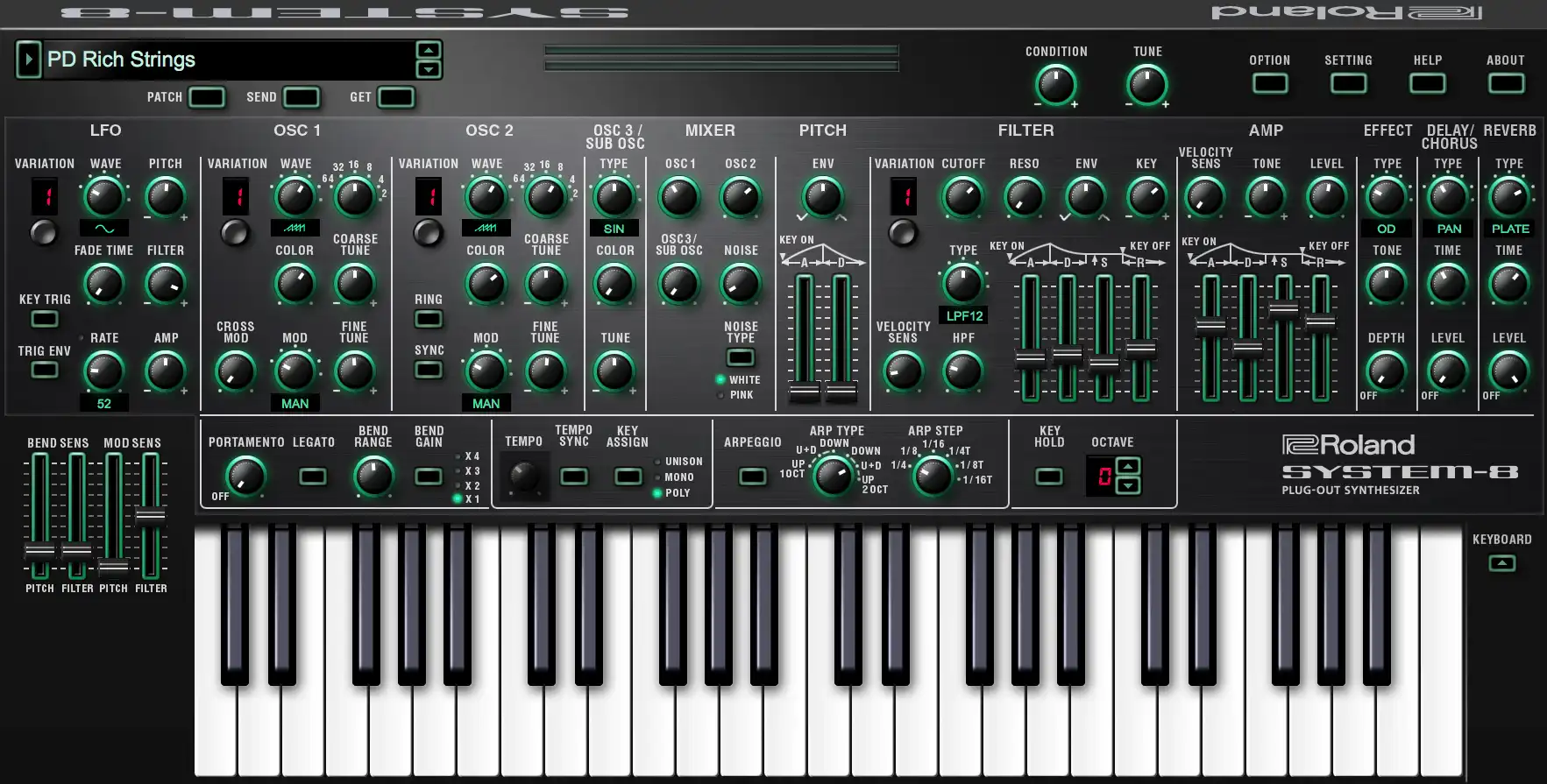

Hochmoderner Keyboard-Synthesizer mit Analog Circuit Behavior (ACB)-Modellierung
Retro-analoge und dynamische moderne Klänge, die durch leistungsstarke DSP-Effekte aufgewertet werden
Seidig weiche Multimode-Filter und umfangreiche Modulationsmöglichkeiten
Dient als computerbasierter Editor für den Roland SYSTEM-8 Hardware-Synthesizer
VST- und AU-kompatibel
