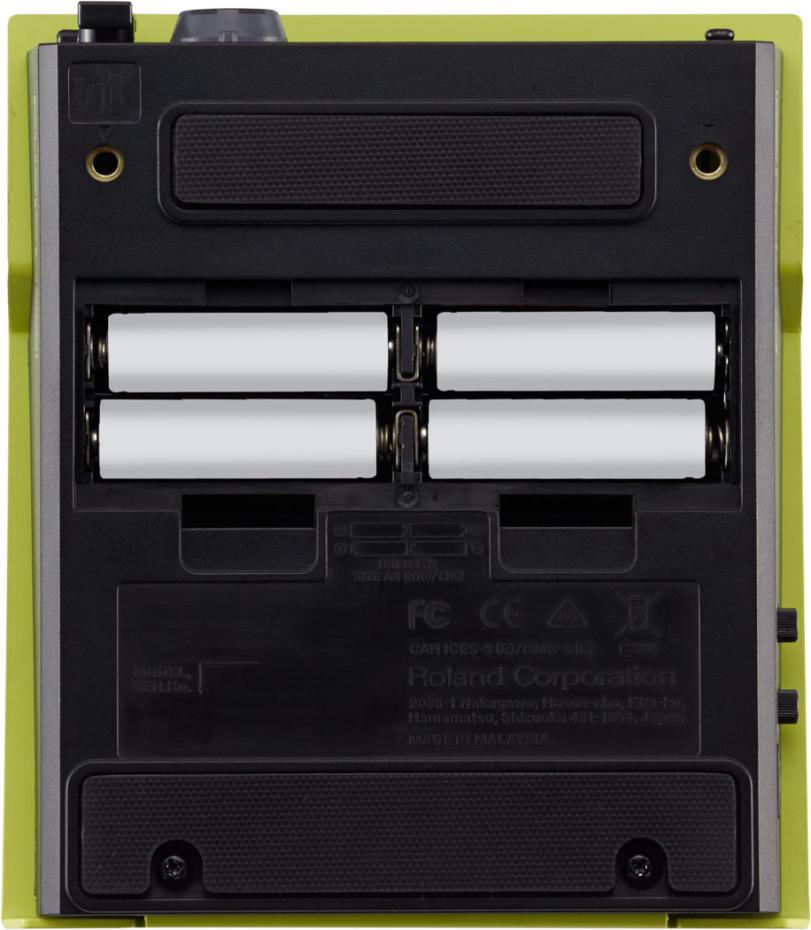

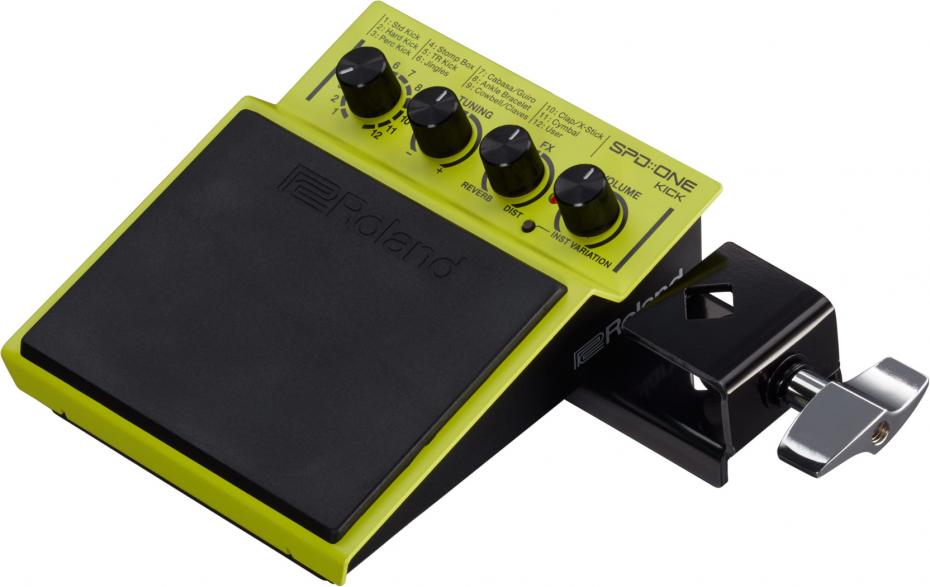

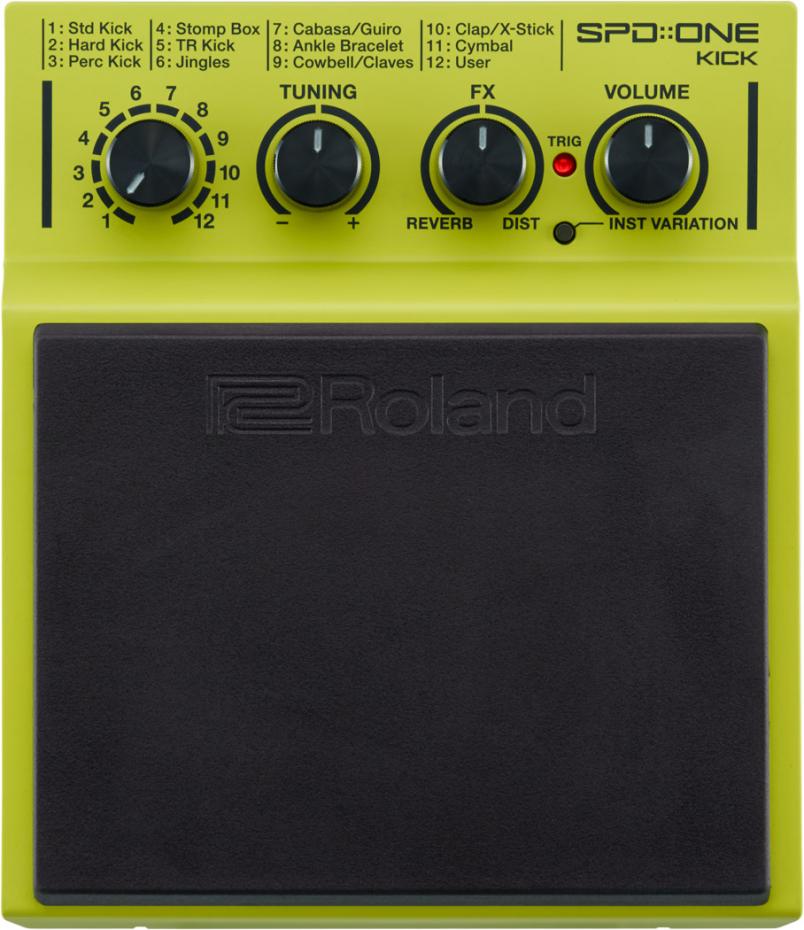

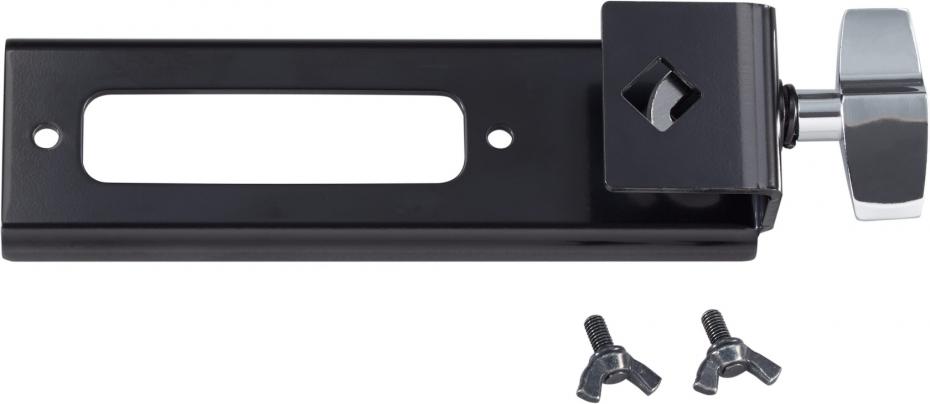

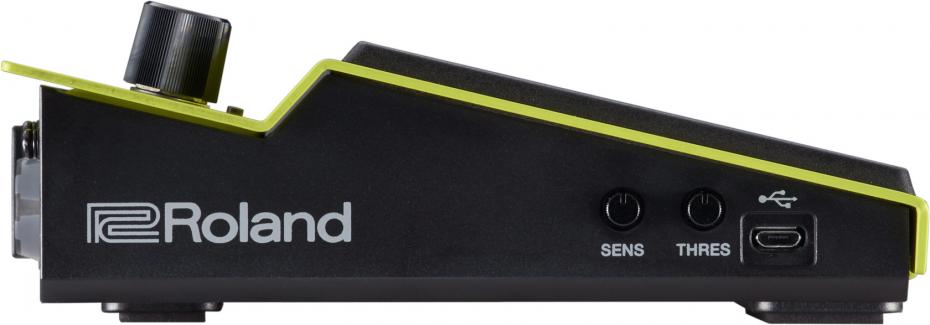

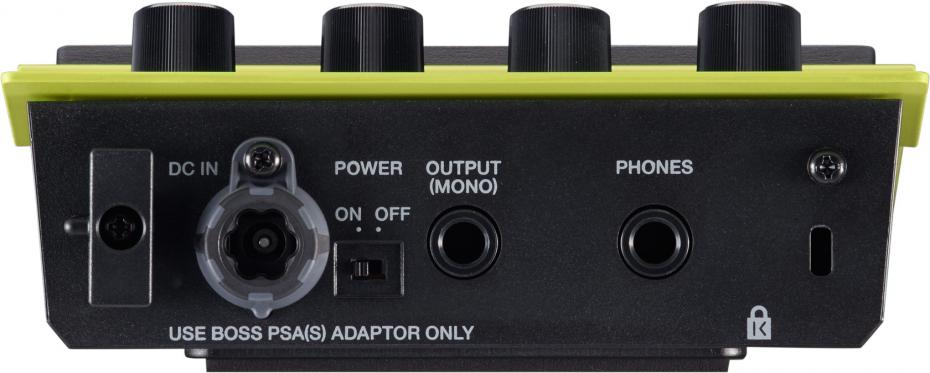

 Instrumente | 22 User Sample Number of User Sample: 1 Sound Length: 5seconds Data Format: WAV (44.1 kHz, 16 bits, Mono/Stereo) Controls INST knob [TUNING] knob [FX] knob [VOLUME] knob [INST VARIATION] button [THRES] knob [SENS] knob [POWER] switch Effects Reverb, Distortion Indicator TRIG Indicator Connectors OUTPUT (MONO) jack: 1/4-inch phone type PHONES jack: Stereo 1/4-inch phone type USB port: Micro-B type DC IN jack USB MIDI Mass Storage Class Power Supply Rechargeable Ni-MH battery (AA, HR6) x 4 Alkaline battery (AA, LR6) x 4 AC adaptor (DC9V) Current Draw 300 mA (DC IN) *Expected battery life under continuous use Rechargeable Ni-MH battery (AA, HR6): Normal use: Approx. 7 hours Maximum load use: Approx. 4 hours Alkaline battery (AA, LR6): Normal use: Approx. 6 hours Maximum load use: Approx. 3 hours *These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. Accessories Owner´s manual Leaflet "USING THE UNIT SAFELY" Attachment Attachment screws x 2 Holder mounting screws (bolt x 1, nut x 1, washers x 2) *Acceptable rod diameters: 8.0–12.7 mm (3/8–1/2 inches) Alkaline batteries (AA, LR6) x 4 Options (sold separately) AC adaptor: PSA-S series Personal drum monitor: PM-10 Headphones: RH-300V Größe und Gewicht: 140 mm x 160 mm x 56 mm, 900 g |
