Vollständige Beschreibung
Die Klangerzeugung der Viscount Legend Live Orgel basiert auf der Tonewheel Modeling Technology für höchstmögliche Klangqualität.
Für jedes der beiden Manuale steht klass...
mehr lesenDie Klangerzeugung der Viscount Legend Live Orgel basiert auf der Tonewheel Modeling Technology für höchstmögliche Klangqualität.
Für jedes der beiden Manuale steht klassisch, ein Set Drawbars zur Verfügung.
Eine große Auswahl an den typischen Effekten, wie Volume, Vibrato, Chorus, Percussion und Key Klick sorgen für den optimalen Orgelklang.
Um die Viscount Legend perfekt zu verstärken besitzt die Orgel einen 11-pin Leslie Output.
Technische Daten
Keyboard
- Upper Keyboard - 61 notes waterfall
- Lower Keyboard - 61 notes waterfall
Sound Generator
Technology: TMT (Tonewheel Modelling Technology)
Transposer: -6 +5 semi...
mehr lesen
Keyboard
- Upper Keyboard - 61 notes waterfall
- Lower Keyboard - 61 notes waterfall
Sound Generator
Technology: TMT (Tonewheel Modelling Technology)
Transposer: -6 +5 semitones
Fine Tuning: +/- ¼ tone
Crosstalk: Unique crosstalk created for each tonewheel model
Keyclick: A new revolutionary state of the art design
Tonewheel model: '30, '50, '70, Alt. 1, Alt. 2, Alt. 3
String Bass: On/Off, Decay Control
Harmonic Percussion: On/Off, Volume Soft/Normal, Decay Fast/Slow, Harmonic Percussion 2nd / 3rd Percussion Level and Percussion Decay Controls
Integrierte Effekte:
* Reverb
* Overdrive
* Vibrato/Chorus:
Upper On/Off
Lower & Pedal On/Off
Select: V-1, V-2, V-3, C-1, C-2, C-3
Interface

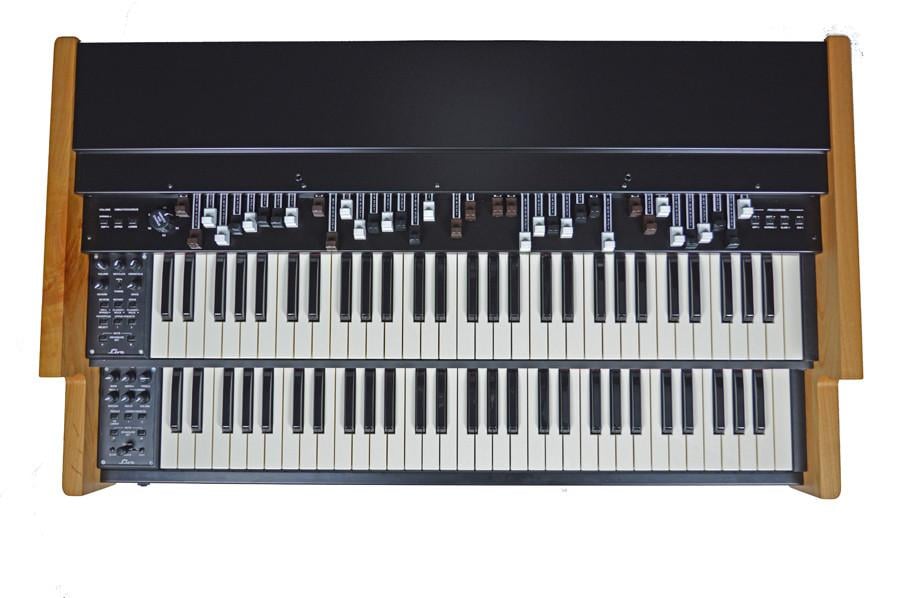

Controls
- Upper Front Panel: Volume; Reverb; Drive; Keyclick; Tuning; Crosstalk; Rotary; Transpose; Upper pre-sets (1/2); Drawbars set (A/B/MUTE)
- Lower Front Panel: Tone controls; Pedal Sustain, Percussion Decay; Percussion Volume; Pedals to lower; Lower pre-sets (1/2); Drawbars set; (A/B/MUTE); Rotary speed control.
Drawbars - Upper
2 sets of nine drawbars: 16' - 5 1/3' - 8' - 4' - 2 2/3' - 2' - 1 3/5' - 1 1/3' - 1'
Drawbars - Lower
2 sets of nine drawbars: 16' - 5 1/3' - 8' - 4' - 2 2/3' - 2' - 1 3/5' - 1 1/3' - 1'
Drawbars - Upper Preset
Upper Drawbar Set A or Set B + 2 pre-sets and Upper MIDI Local on/off
Drawbars - Lower Preset
Lower Drawbar Set A or Set B + 2 pre-sets and Lower MIDI Local on/off
Drawbars - Pedals
2 drawbars: 16' & 8'
Midi In, Out, Thru
Out 1, Out 2, In, Thru, Pedalboard In

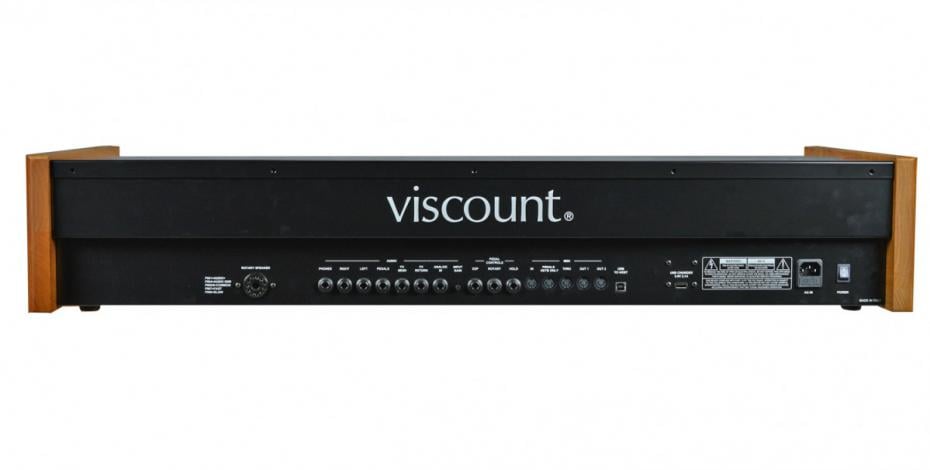

Connections
OUTPUT
L & R Line Out 6.35 mm jacks; Pedals Direct Out 6,35 mm jack (without C/V and Rotary emulation); 11 pin Rotary Speaker (without Rotary emulation); 2 Stereo headphone 6,35 mm jacks; TRS Digital Expression Pedal 6,35 mm jack; Rotary emulation Footswitch 6,35 mm jack; USB to HOST; USB HOST type A (Power charger only); FX send.
INPUT
Audio input mono with adjusting gain pot; FX return
OTHER
Optional
Pedalboard 18 notes; Expression Pedal; Bench; Stand; Softbag;
Colours and Finishes
Satin black, American Alder
Dimensions (WxHxD)
101 x 18 x 59 cm / 40.16' x 7.4' x 23,2'
Weight
18 kg / 39.68 lbs
Integrierte Effekte:
* Reverb
* Overdrive
* Vibrato/Chorus:
Upper On/Off
Lower & Pedal On/Off
Select: V-1, V-2, V-3, C-1, C-2, C-3

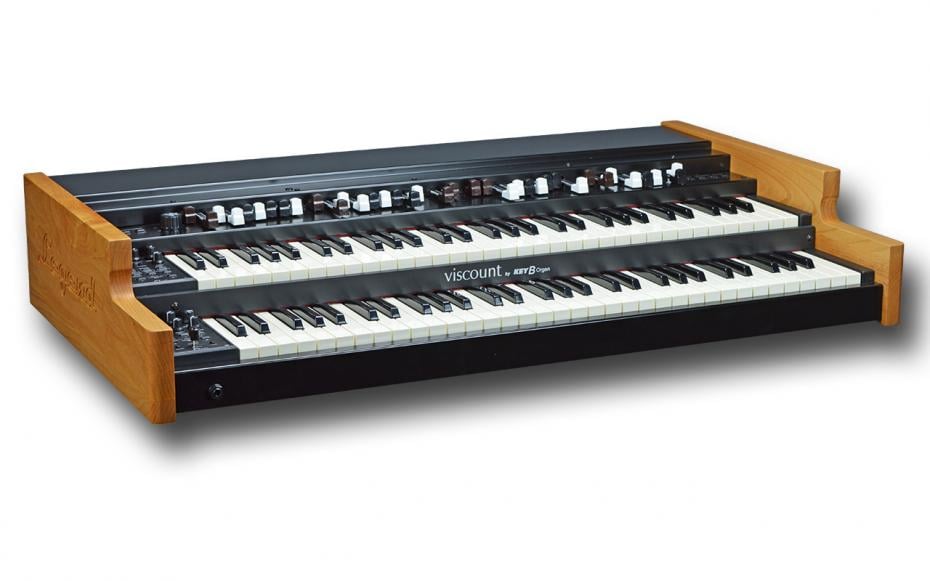

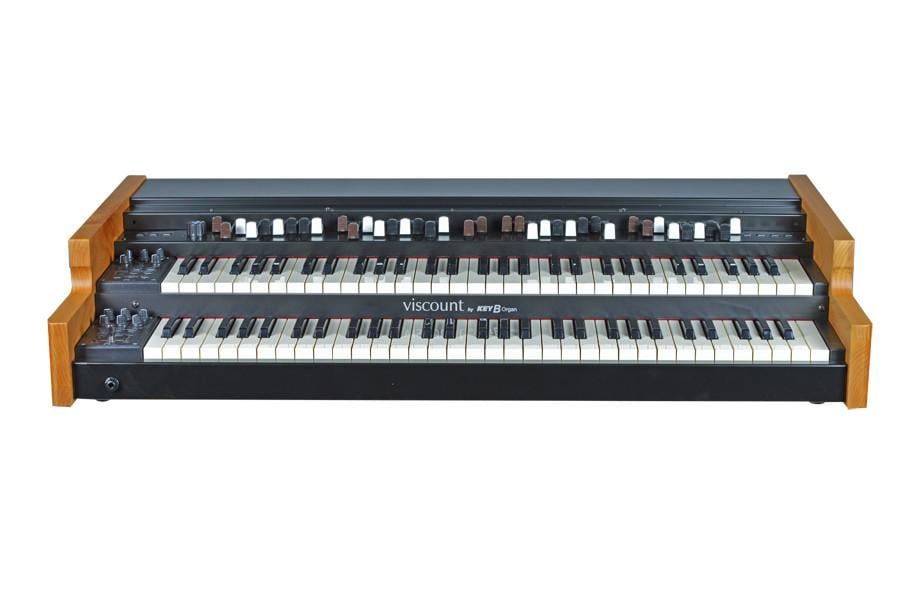

Viscount Legend Live
