 16-voice polyphony, duo-timbral
Compatible with the Waldorf Quantum synth engine
3 Oscillators
Oscillator Modes | Wavetable, Waveform (VA), Particle (Sampling and Granular Sampling), Resonator Kernels (up to 6 sub-oscillators which can be interlinked through FM at audio rate)
3 Stereo Filters per voice
True stereo path
Dual Digital Filter: Two filters with independable modes, 12/24dB LP/HP/BP in all combinations, Nave, Largo, PPG, Quantum and StateVariable models
Digital Former: Filter models from Waldorf Nave, Largo and PPG in HP/LP/BP/Notch, Comb filter, Bitcrusher, Drive, RingMod, StateVariable mode, Analyzer displayed in Filter view, Filter curve moves when modulated (optional), Sophisticated filter routing options with modulatable panning and levels
Modulators: 6 Envelopes, 6 LFOs, Komplex Modulator (LFO/Envelope combination with user-definable shape)
Mod Matrix: 40 slots, Fast assign mode, One additional control amount per slot, Identical Sources and Destinations can be used multiple times until the matrix is full

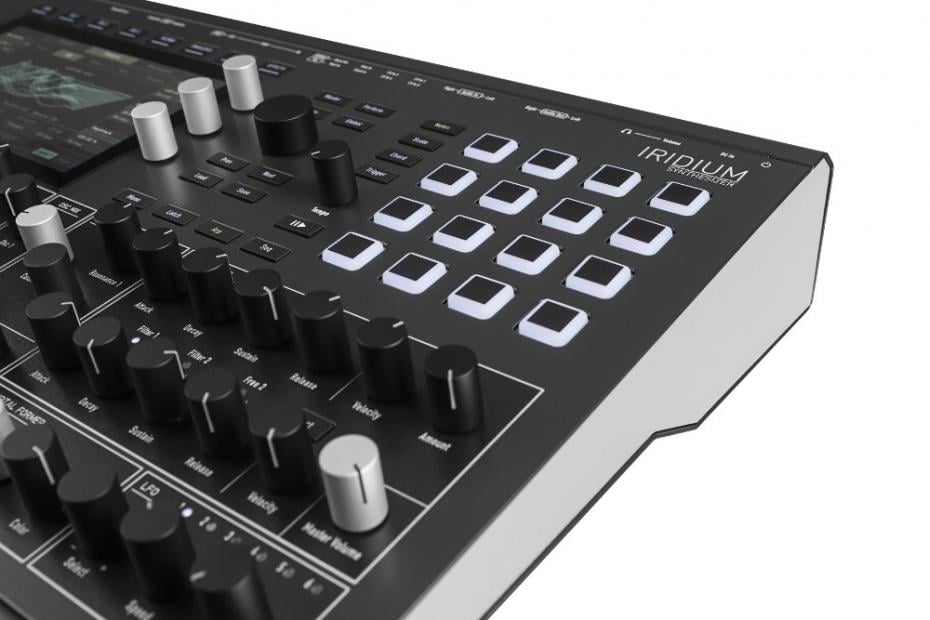

Pads: 4x4 silicon pad matrix with RGB backlights, Pads can play notes, chords, arpeggios and sequences, Latch mode
Performance features: Arpeggiator, Step sequencer with up to 32 steps for notes and parameters, Favorites screen for quick patch recall, Onscreen Mod Wheel, Pitch Bend and Aftertouch

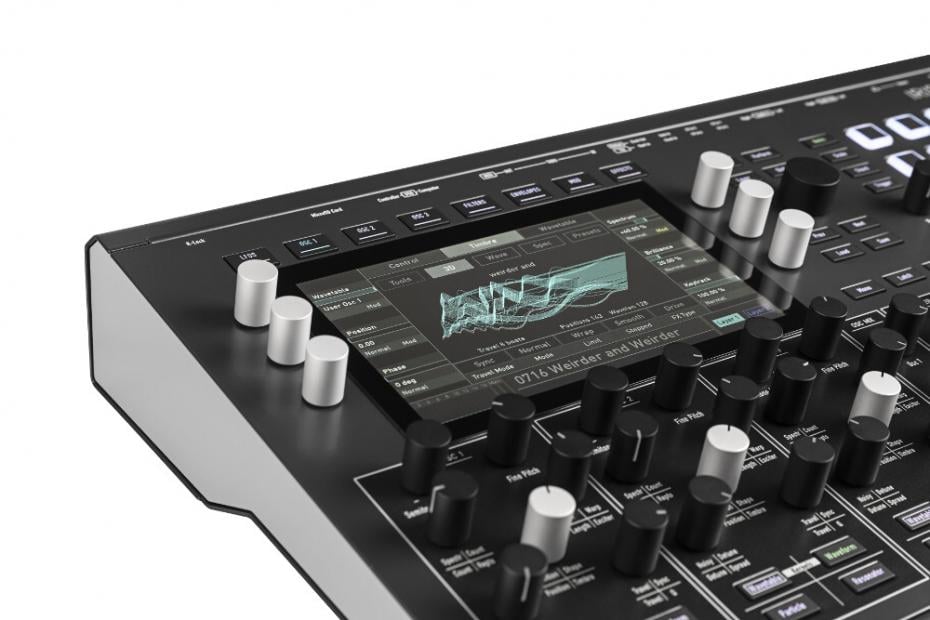

Screen: Industrial-grade highly responsive touch screen
Patches: Over 1000 factory sounds, Capacity of 7000 patch memory slots (numbers 0000-9999 can be used), Patches from Quantum can be loaded and vice-versa, Category filter for patch list, 2GB user sample flash memory

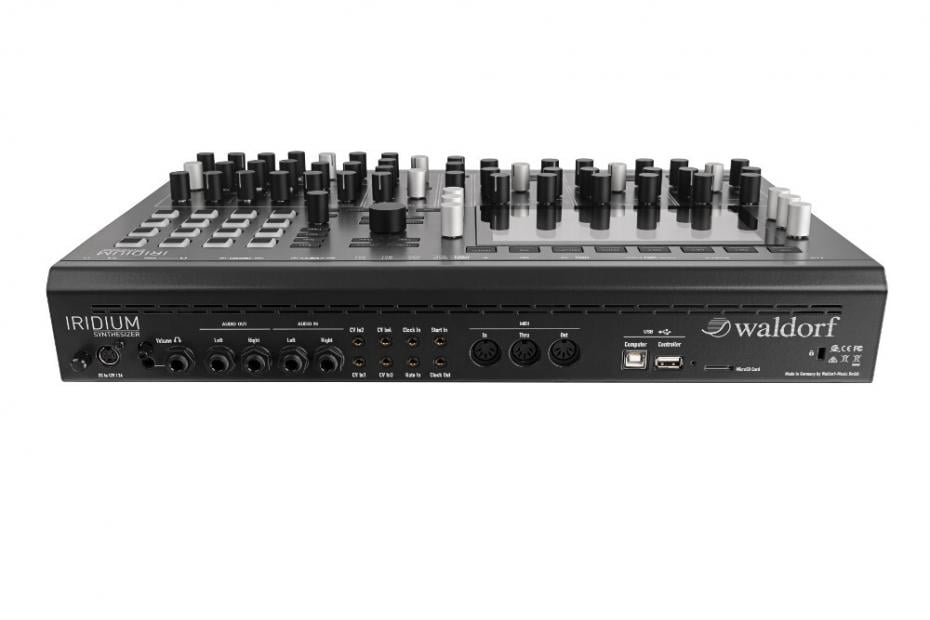

Connections: 2x TS output, 2x TS input, Headphones output with Gain control, DIN MIDI In/Out/Thru, USB MIDI, USB host for storage and MIDI devices, MicroSD slot, Kensington® lock
CV connections: 4 CV inputs plus Gate In, Trigger In, Clock In, Clock Out, Inputs can be used as modulation sources in the Mod Matrix

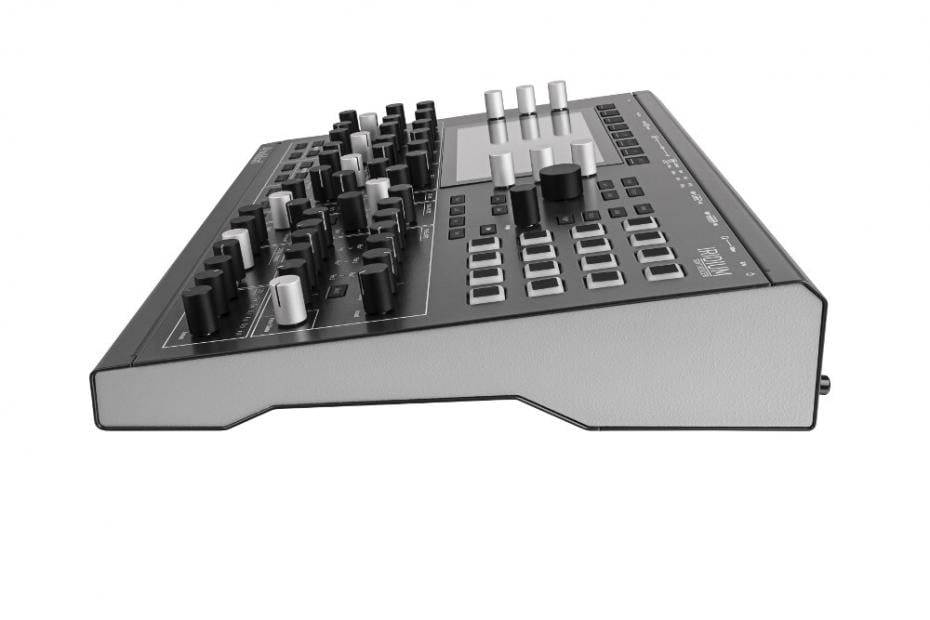

Overall: Sturdy metal case with aluminum knobs, Dimensions: 440mm wide by 305mm depth by 85mm height (including controls), Weight: 5.4kg, 19" rack assembly parts available in near future, |
