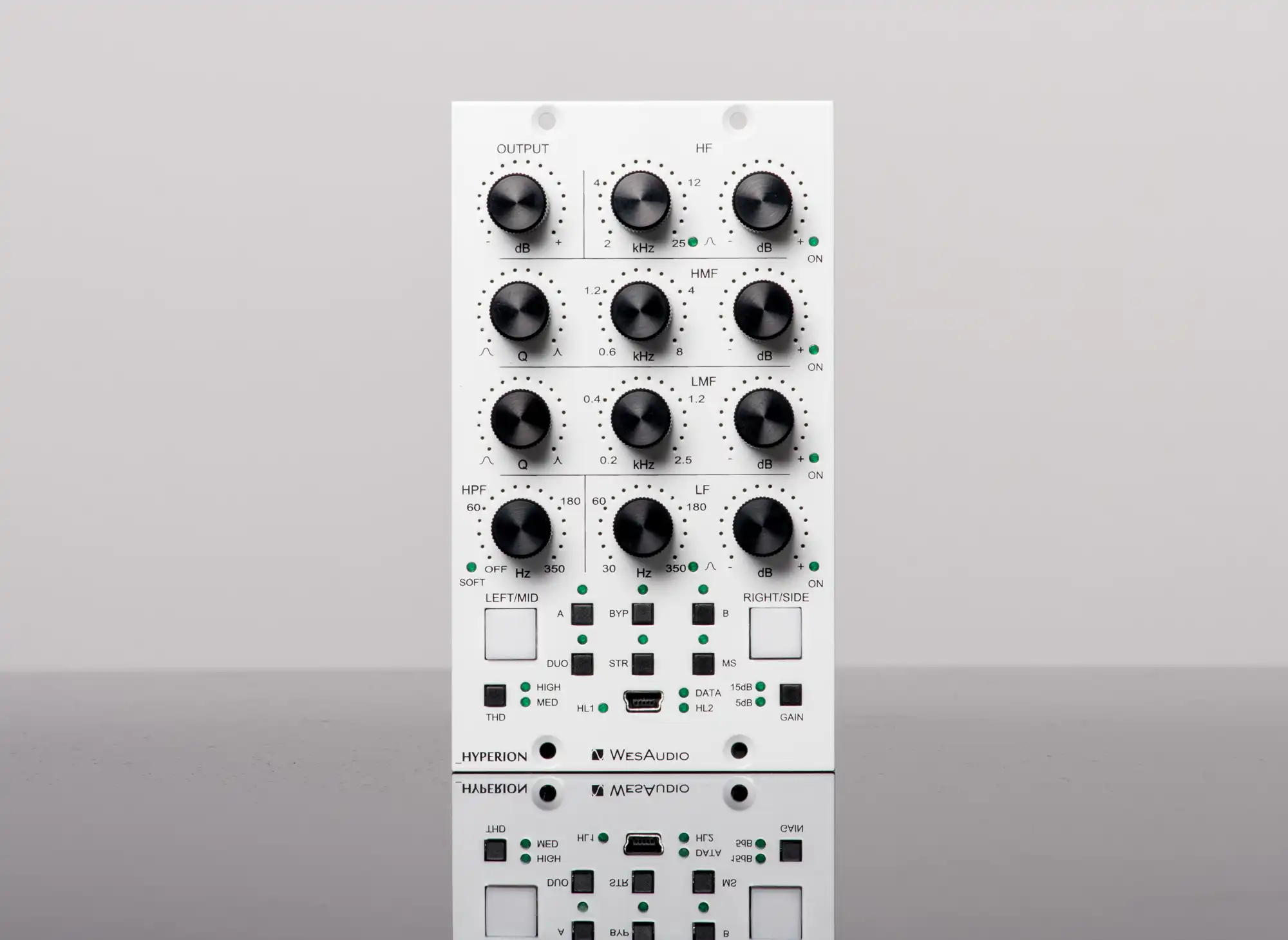

 Parametrischer 4-Band EQ im 500er Format

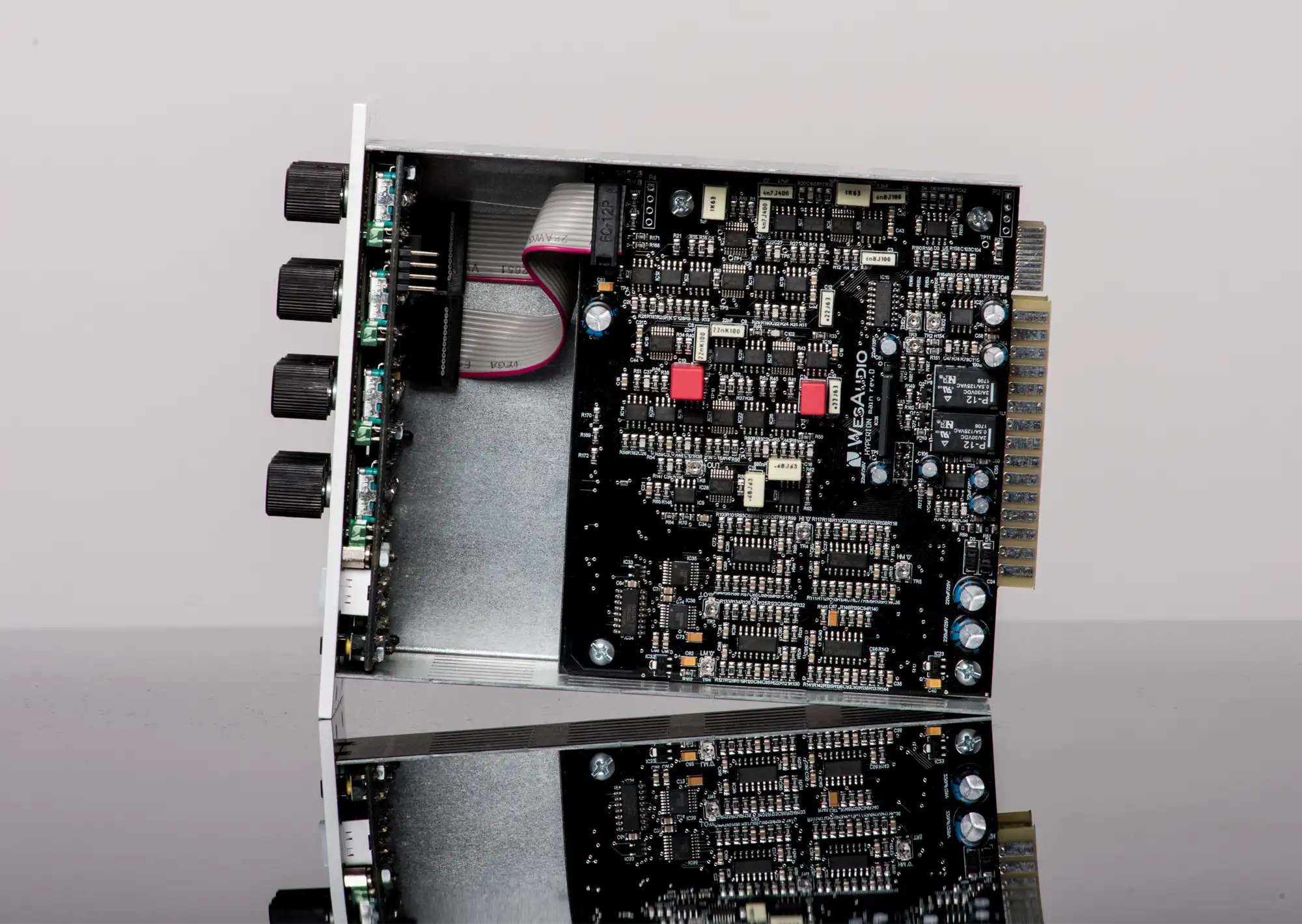

100% analoge Schaltung

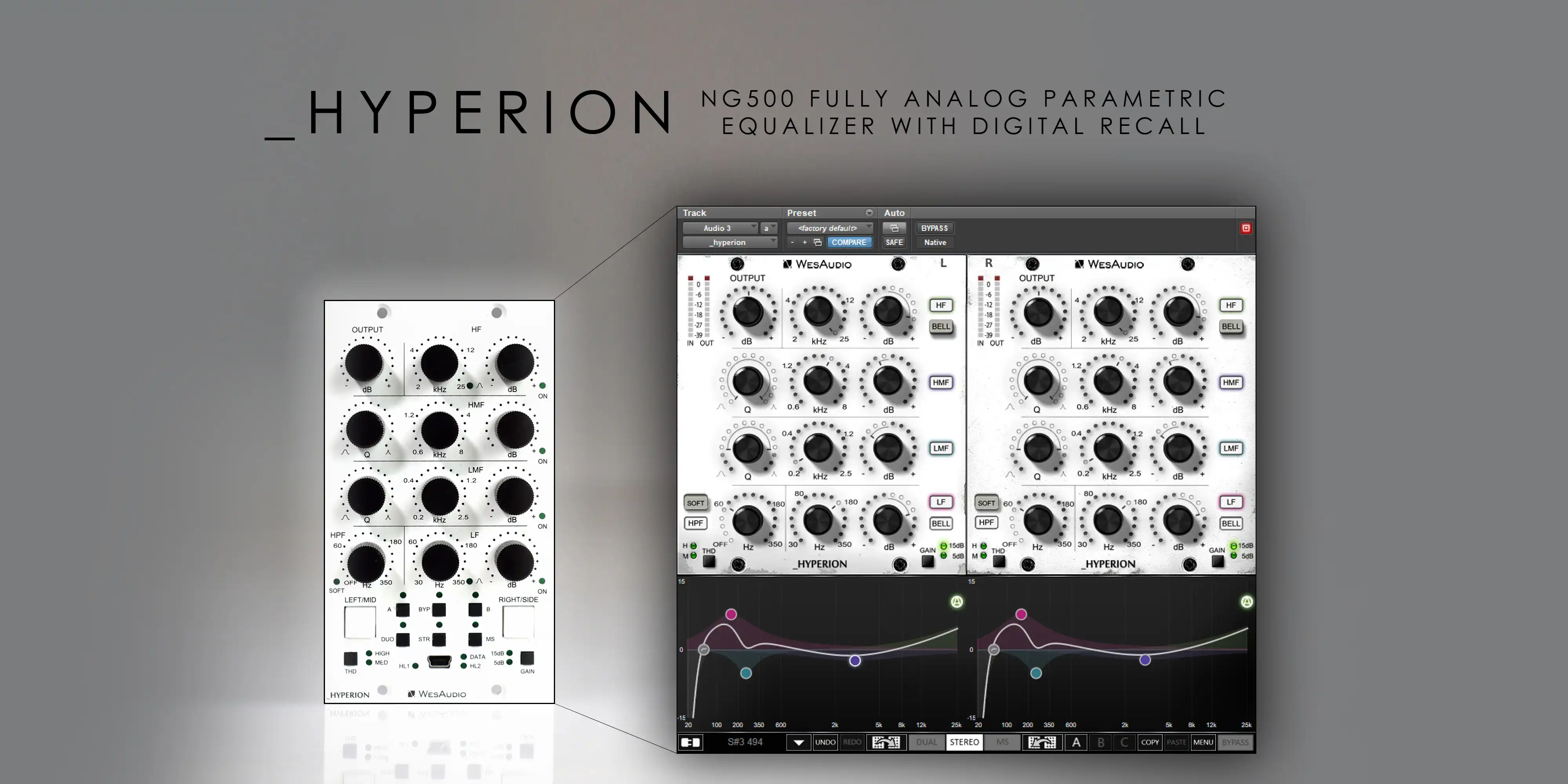

PlugIn Steuerung über USB mit vollem digitalem Recall
+5/+15db Cut/Boost
+24dBu Headroom
Stereo / Dual mono / Mid/Side operation mode
A/B Vergleichsfeature |
requency response: 10Hz-150kHz (-2dB) THD+N all bands gain “0”: 0.003% (1kHz,0dBu) THD+N +15dB band boost: <0.15% (1kHz,0dBu) Input impedance: 10kohm Output impedance: <100ohm Max signal level: +24dBu Crosstalk:< -100dB THD (MID switch): 1% THD (HIGH switch): 2.5% Power consumption: 150mA per rail Dimensions : 76x133x158mm Warranty: 2 years Unit needs to warm up for about 5 minutes before usage as its temperature may affect some internal variables – like frequencies of each band, and very slightly gain and Q settings. Each band can boost or cut in configurable gain mode (It affects also OUTPUT control): 15dB boost or cut in 0.25 dB steps, 5dB boost or cut in 0.083 dB steps, Each frequency control has predefined amount of steps in logarithmic scale: HF frequency – 256 steps, HMF frequency – 256 steps, LMF frequency – 256 steps, LF frequency – 200 steps, HPF frequency – 128 steps.
